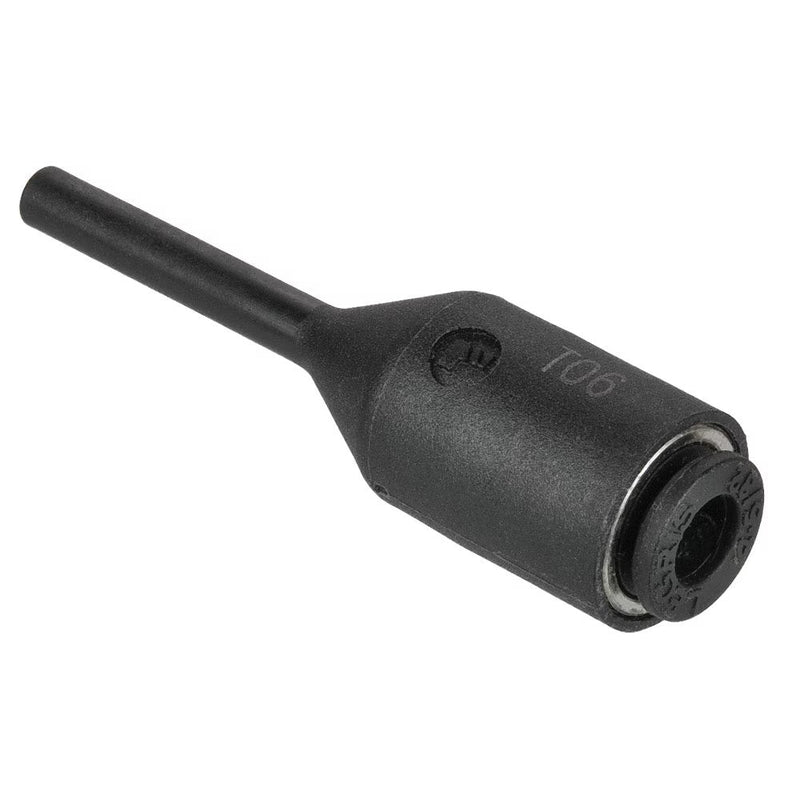

32PLPSP-4-6M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 1/4" to 6mm Tube Expander | 1.75" Length (L) | Straight | Glass-Reinforced Nylon | Pack of 10

Save $3.74

$41.17

$41.17 - $41.17

$41.17

$37.43

$37.43 - $37.43

$37.43

by Parker Hannifin
Push-to-Connect Fittings:32PLPSP Tube Expander

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 32PLPSP-4-6M Parker \| 10 \|
Series:	32PLPSP Series
Shape (Orientation):	Straight
Material(s):	Glass-Reinforced Nylon
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size 1	Tube Size 2	L	L1
32PLPSP-4-2	1/4"	1/8"	1.61"	1.16"
32PLPSP-4-6M	1/4"	6M	1.75"	1.02"
32PLPSP-4-4M	1/2"	5/32"	1.61"	1.14"
32PLPSP-4-3	1/4"	3/16"	1.61"	1.00"
32PLPSP-6-4	3/8"	1/4"	1.58"	1.00"
