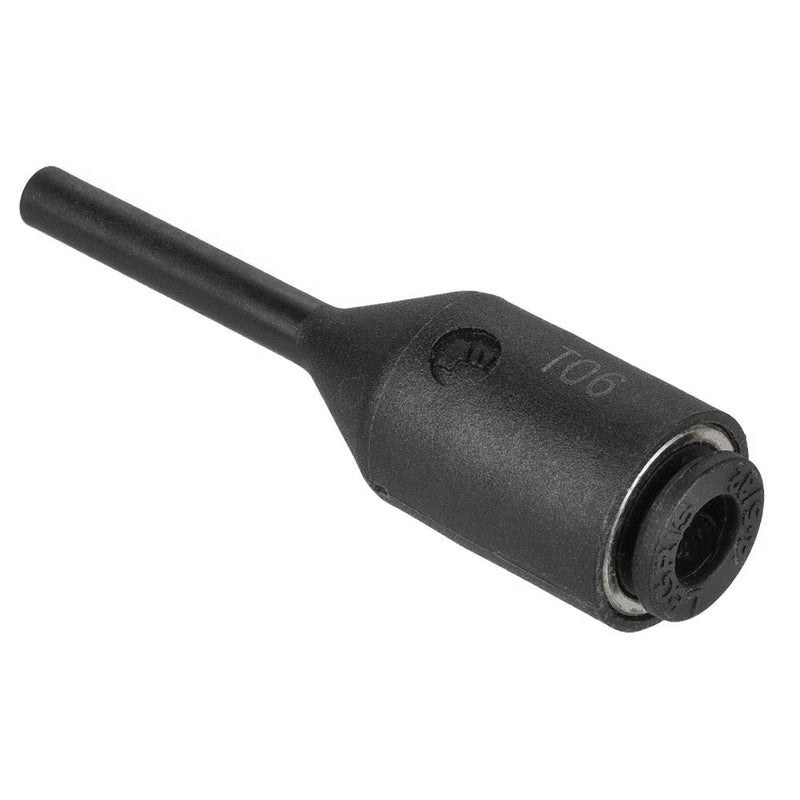

32PLPSP-4-4M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 1/4" to 5/32-mm Tube Expander | 1.61" Length (L) | Straight | Glass-Reinforced Nylon | Pack of 10

32PLPSP-4-4M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 1/4" to 5/32-mm Tube Expander | 1.61" Length (L) | Straight | Glass-Reinforced Nylon | Pack of 10

Save $1.79 Save $1.79
$19.65
$19.65 - $19.65
$19.65
$17.86
$17.86 - $17.86
$17.86

by Parker Hannifin
Push-to-Connect Fittings:32PLPSP Tube Expander

Package Quantity: 10 Units

Specifications for Variant SKU: 32PLPSP-4-4M Parker | 10 |
Series: 32PLPSP Series
Shape (Orientation): Straight
Material(s): Glass-Reinforced Nylon
Special Properties: Corrosion Resistance, Chemical Resistance, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size 1 Tube Size 2 L L1
32PLPSP-4-2 1/4" 1/8" 1.61" 1.16"
32PLPSP-4-6M 1/4" 6M 1.75" 1.02"
32PLPSP-4-4M 1/2" 5/32" 1.61" 1.14"
32PLPSP-4-3 1/4" 3/16" 1.61" 1.00"
32PLPSP-6-4 3/8" 1/4" 1.58" 1.00"
