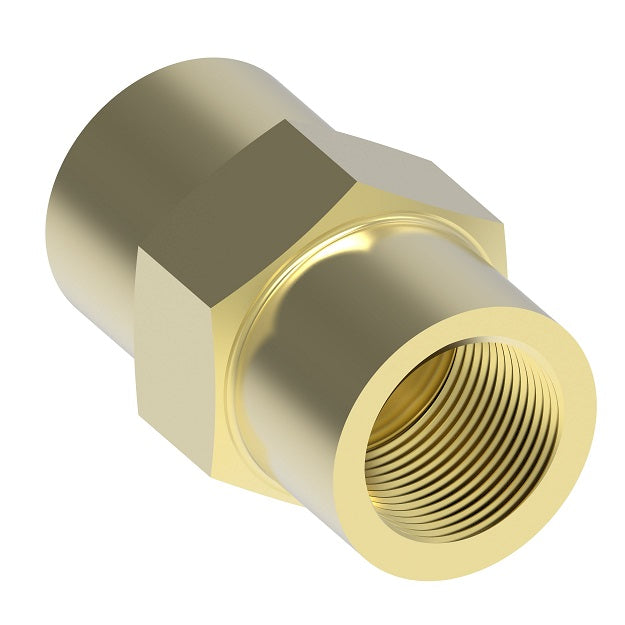

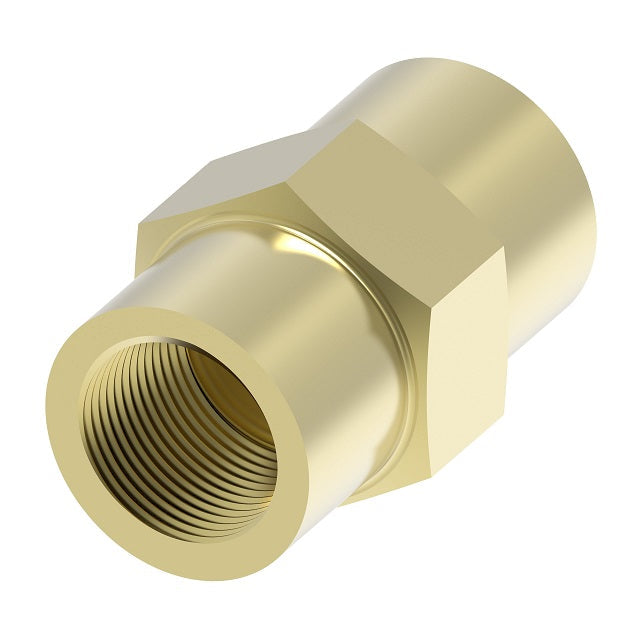

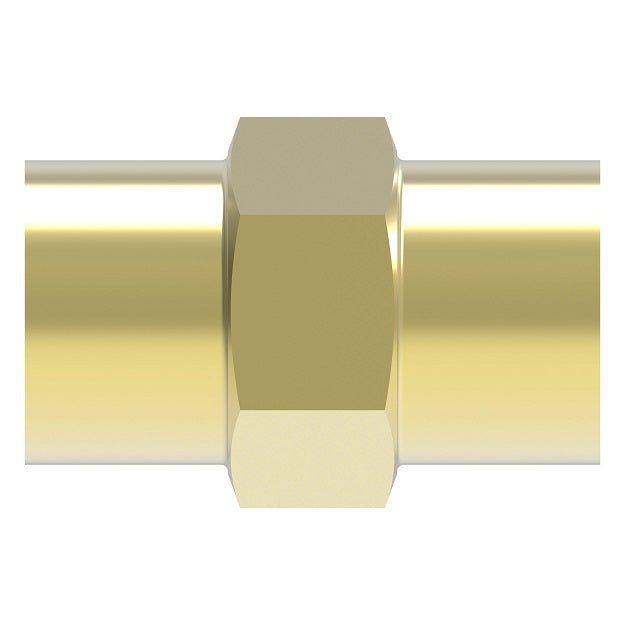

3300X8 by Danfoss | Pipe Adapter | Coupling | 1/2" Female NPTF x 1/2" Female NPTF | Brass
3300X8 by Danfoss | Pipe Adapter | Coupling | 1/2" Female NPTF x 1/2" Female NPTF | Brass
3300X8 by Danfoss | Pipe Adapter | Coupling | 1/2" Female NPTF x 1/2" Female NPTF | Brass
3300X8 by Danfoss | Pipe Adapter | Coupling | 1/2" Female NPTF x 1/2" Female NPTF | Brass

3300X8 by Danfoss | Pipe Adapter | Coupling | 1/2" Female NPTF x 1/2" Female NPTF | Brass

$8.06 - $8.06
$8.06
$8.06 - $8.06
$8.06

Aeroquip® by Danfoss
Pipe Adapter - Coupling
Specifications for Variant SKU: 3300X8 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Female NPTF, 1/2in Female NPTF, Some Ends Match
Material(s): Brass
Applications:
  • Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
  • Dryseal pipe threads (NPTF).
  • Fair Vibration Resistance.
Used With:
  • Brass, bronze and iron pipe.
Material:
  • CA360 Brass.
Operating Pressure:
  • Operating pressure up to 1200 psi.
Temperature Range:
  • -65°F to +250°F
    (-53°C to +121°C).
Conformance:
  • Ref. SAE No. 130138
  • Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14
Brass
Part Number 		Female Pipe
Thread		 Hex
C		 D L
3300X1 1/16" 7/16" 0.339" 0.75"
3300X2 1/8" 9/16" 0.339" 0.75"
3300X4 1/4" 3/4" 0.438" 1.12"
3300X6 3/8" 7/8" 0.578" 1.12"
3300X8 1/2" 1-1/16" 0.703" 1.50"
3300X12 3/4" 1-1/4" 0.906" 1.53"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
