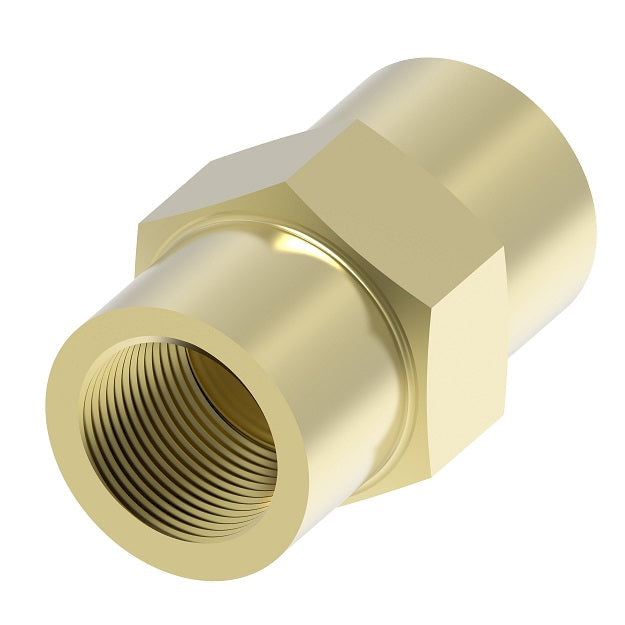

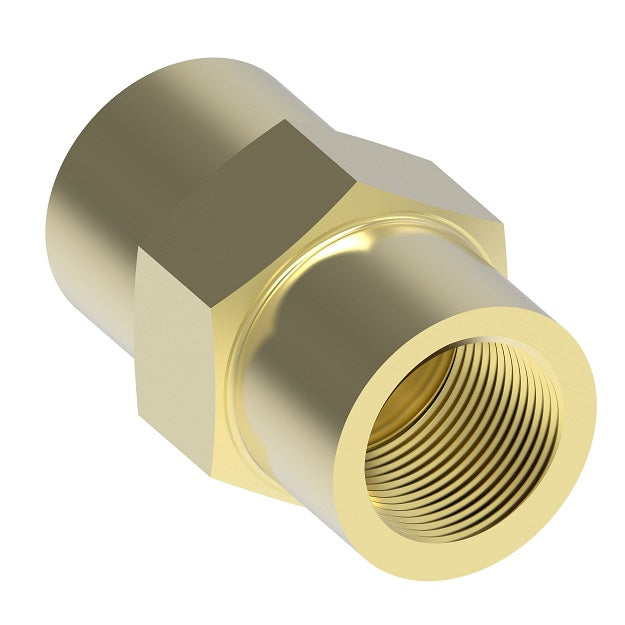

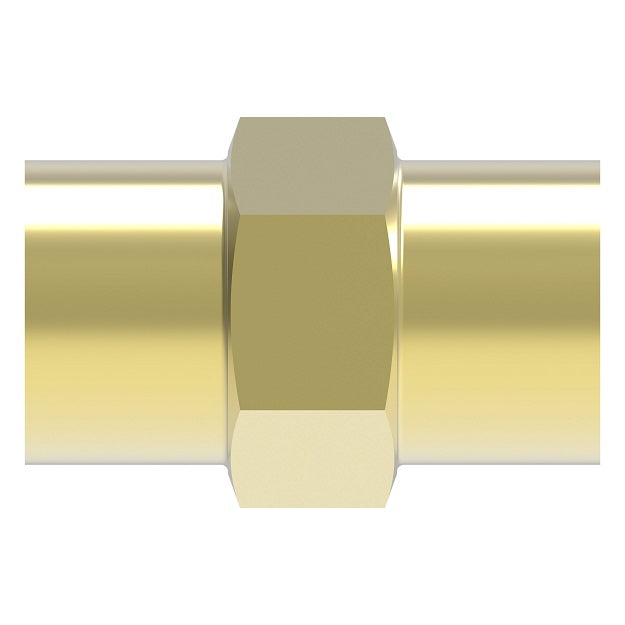

3300X2 by Danfoss | Pipe Adapter | Coupling | 1/8" Female NPTF x 1/8" Female NPTF | Brass

3300X2 by Danfoss | Pipe Adapter | Coupling | 1/8" Female NPTF x 1/8" Female NPTF | Brass Pack of 10

$17.82 - $17.82

$17.82

$17.82 - $17.82

$17.82

Aeroquip® by Danfoss
Pipe Adapter - Coupling

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3300X2-BG Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	1/8in Female NPTF, 1/8in Female NPTF, Some Ends Match
Material(s):	Brass

Applications:
Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
Dryseal pipe threads (NPTF). Fair Vibration Resistance.
Used With:
Brass, bronze and iron pipe.
Material:
CA360 Brass.
Operating Pressure:
Operating pressure up to 1200 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C).
Conformance:
Ref. SAE No. 130138 Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.

Pipe Size	1/16"	1/8"	1/4"	3/8"	1/2"	3/4"
Thread Size	1/16-27	1/8-27	1/4-18	3/8-18	1/2-14	3/4-14


Brass Part Number	Female Pipe Thread	Hex C	D	L
3300X1	1/16"	7/16"	0.339"	0.75"
3300X2	1/8"	9/16"	0.339"	0.75"
3300X4	1/4"	3/4"	0.438"	1.12"
3300X6	3/8"	7/8"	0.578"	1.12"
3300X8	1/2"	1-1/16"	0.703"	1.50"
3300X12	3/4"	1-1/4"	0.906"	1.53"
