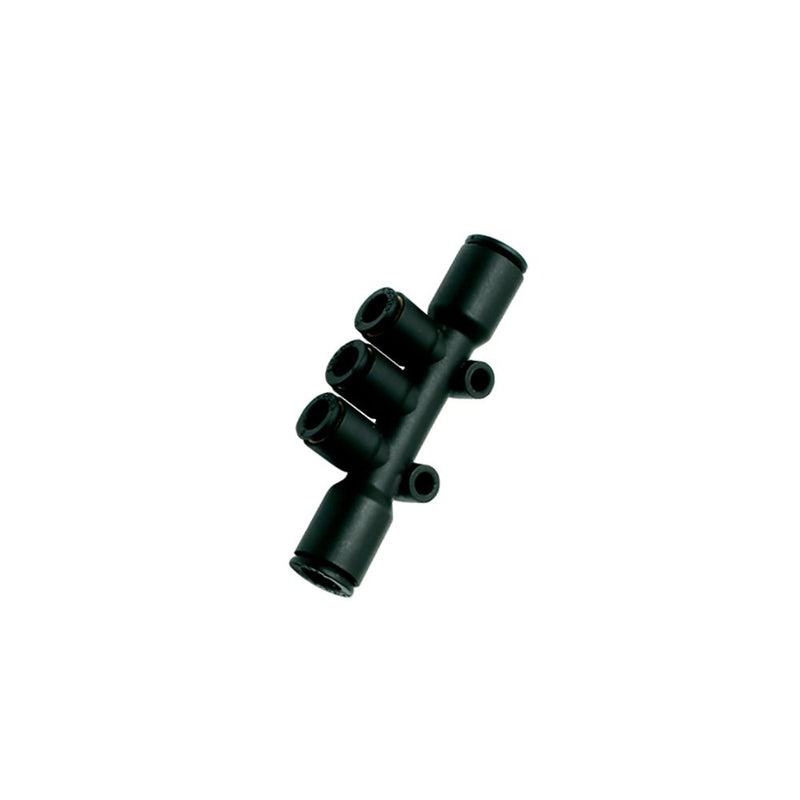

3304 56 56 by Parker | Legris Multiple Fittings | 1/4" Push-to-Connect x 1/4" Push-to-Connect | 3.14" Length | Multiple Tee | Nylon

3304 56 56 by Parker | Legris Multiple Fittings | 1/4" Push-to-Connect x 1/4" Push-to-Connect | 3.14" Length | Multiple Tee | Nylon | Pack of 10

Save $115.13 Save $115.13
$287.83
$287.83 - $287.83
$287.83
$172.70
$172.70 - $172.70
$172.70

by Parker Hannifin
LF 3000® Push-In Fittings / Multiple Fittings:3304 Multiple Tee

Package Quantity: 10 Units

Specifications for Variant SKU: 3304 56 56 Parker | 10 |
Brand: LF 3000®
Series: 3304 Series
Shape (Orientation): Manifold
Material(s): Stainless Steel, Polymer
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Lightweight
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD1 ØD2 H L N ØT Oz
3304 56 04 1/4" 5/32" .97" 2.81" .45" .17" .81 Oz
3304 56 56 1/4" 1/4" 1.22" 3.14" .61" .17" 1.00 Oz
3304 60 56 3/8" 1/4" 1.34" 3.21" .61" .17" 2.05 Oz
