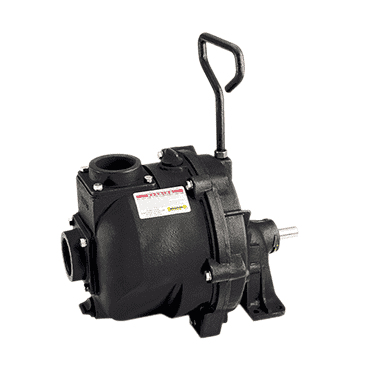

333PBI Banjo 3" 333 Series Cast Iron Bearing Pedestal with 1" Shaft

333PBI by Banjo | Centrifugal Pumps | 3" 333 Series Cast Iron Bearing Pedestal with 1" Shaft

Save $1,647.49 Save $1,647.49
$4,118.72
$4,118.72 - $4,118.72
$4,118.72
$2,471.23
$2,471.23 - $2,471.23
$2,471.23

Banjo Self-Priming Centrifugal Pumps - 3" 333 Series Cast Iron Pumps with Gas Engines or Electric Motors & Replacement Parts
Specifications for Variant SKU: 333PBI Banjo

SPECIFICATIONS

Application: Fluids, Agriculture, Industrial
Product Manual: 3" & 4" Cast Iron Centrifugal Pump Instruction Manual Video: N/A
Replacement Parts: Replacement Parts for 3" 333 Series Cast Iron Pumps with Electric or Gas Engines
Features:
  • Durable cast iron construction
  • Dynamically balanced impeller
  • Replaceable inlet and outlet flanges
  • Graphite loaded silicon carbide sealwith stainless steel cup and spring with FKM (viton type) rubber
  • Pump end separated from engine
  • Large weep holes between pump end and engine
  • "V" Shaped for quicker priming
Notes:
  • CAUTION-WARNING: Please do not run pump dry, restrict or reduce port sizes, or dead head pump. This could cause component failure to pump.
  • DO NOT USE WITH FLAMMABLE LIQUIDS.
  • NOTE: Engine warranty service available at authorized Briggs & Stratton® and Honda® dealers.
Part Number Description Horsepower
3" 333 Series Cast Iron Pumps with Electric Motors
333PIE15 3" Cast Iron Pump w/15 HP Three Phase Electric Motor 15 HP (Made to Order)
3" 333 Series Cast Iron Pumps with Gas Engines
333PIH13 3" Cast Iron Pump w/13 HP Honda® Engine w/ electric Start & Pull Rope 13 HP (Made to Order)
3" 333 Series Cast Iron Bearing Pedestal
333PBI 3" Cast Iron Bearing Pedestal w/1" Shaft N/A (Made to Order)
3" 333 Series Cast Iron Pump Only
333POI 3" Cast Iron Pump Only w/1" x 3 5.8" Shaft & 5 Vane Impeller Unassembled N/A (Made to Order)
Replacement Parts for 333PIH13 & 333PBI
Item Part Number Description Quantity Required
Not Shown 16099 Impeller Removal Bolt 1
1 18500 Bearing Pedestal (333PBI) 1
2 16704 Rear Bracket 1
3 16713 Mechanical Seal 1
4 16710 O-Ring 1
5 17704 3/8" - 16 x 1.25" SS Cap Screw (333PBI) 4
6 V20018 3/8" SS Lock Washer 17
7 16773 3" Impeller (333PBI) 1
7 16774 3" Impeller (333PIH13 & 333POI) 1
8 16901 1/4" SQ. 3/4" Key Stock 1
9 16765 Impeller Bolt (333PBI) 1
9 13765 Impeller Bolt (333PPIH13) 1
10 16019 Gasket Set 1
11 16702 Volute 1
13 16733 Body 1
14 18511 Adapter Plate (333PBI) 1
15 18512 3/8" - 16 x 0.875" SS HHCS (333PBI) 4
Not Shown 16751 Bracket Shim Set 1
Not Shown 16752 Impeller Shim 1
Not Shown 18033 Handle 1
Not Shown 18034 5/8" SS Jam Nut 1
16 16001 Outlet Flange 1
17 16003 Inlet Flange 1
18 16706 FKM (viton type) Inlet Gasket with Check 1
19 16011 FKM (viton type) Outlet Gasket 1
20 13777 3/4" Plug 2
21 18027 3/8" - 16 x 1.50" HHCS (333PIH13) 8
22 V20018 3/8" SS Lock Washer 8
23 13778 O-Ring 2
