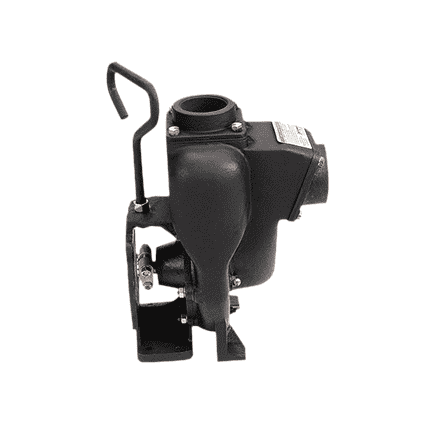

333POI Banjo 3" 333 Series Cast Iron Pump Only with 1" x 3-5/8" Shaft & 5 Vane Impeller Unassembled

333POI by Banjo | Centrifugal Pumps | 3" 333 Series Cast Iron Pump Only with 1" x 3-5/8" Shaft & 5 Vane Impeller Unassembled

Save $138.63 Save $138.63
$1,569.90
$1,569.90 - $1,569.90
$1,569.90
$1,431.27
$1,431.27 - $1,431.27
$1,431.27

Banjo Self-Priming Centrifugal Pumps - 3" 333 Series Cast Iron Pumps with Gas Engines or Electric Motors & Replacement Parts
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 333POI Banjo

SPECIFICATIONS

Application: Fluids, Agriculture, Industrial
Product Manual: 3" & 4" Cast Iron Centrifugal Pump Instruction Manual Video: N/A
Replacement Parts: Replacement Parts for 3" 333 Series Cast Iron Pumps with Electric or Gas Engines
Features:
  • Durable cast iron construction
  • Dynamically balanced impeller
  • Replaceable inlet and outlet flanges
  • Graphite loaded silicon carbide sealwith stainless steel cup and spring with FKM (viton type) rubber
  • Pump end separated from engine
  • Large weep holes between pump end and engine
  • "V" Shaped for quicker priming
Notes:
  • CAUTION-WARNING: Please do not run pump dry, restrict or reduce port sizes, or dead head pump. This could cause component failure to pump.
  • DO NOT USE WITH FLAMMABLE LIQUIDS.
  • NOTE: Engine warranty service available at authorized Briggs & Stratton® and Honda® dealers.
Part Number Description Horsepower
3" 333 Series Cast Iron Pumps with Electric Motors
333PIE15 3" Cast Iron Pump w/15 HP Three Phase Electric Motor 15 HP (Made to Order)
3" 333 Series Cast Iron Pumps with Gas Engines
333PIH13 3" Cast Iron Pump w/13 HP Honda® Engine w/ electric Start & Pull Rope 13 HP (Made to Order)
3" 333 Series Cast Iron Bearing Pedestal
333PBI 3" Cast Iron Bearing Pedestal w/1" Shaft N/A (Made to Order)
3" 333 Series Cast Iron Pump Only
333POI 3" Cast Iron Pump Only w/1" x 3 5.8" Shaft & 5 Vane Impeller Unassembled N/A (Made to Order)
Replacement Parts for 333PIH13 & 333PBI
Item Part Number Description Quantity Required
Not Shown 16099 Impeller Removal Bolt 1
1 18500 Bearing Pedestal (333PBI) 1
2 16704 Rear Bracket 1
3 16713 Mechanical Seal 1
4 16710 O-Ring 1
5 17704 3/8" - 16 x 1.25" SS Cap Screw (333PBI) 4
6 V20018 3/8" SS Lock Washer 17
7 16773 3" Impeller (333PBI) 1
7 16774 3" Impeller (333PIH13 & 333POI) 1
8 16901 1/4" SQ. 3/4" Key Stock 1
9 16765 Impeller Bolt (333PBI) 1
9 13765 Impeller Bolt (333PPIH13) 1
10 16019 Gasket Set 1
11 16702 Volute 1
13 16733 Body 1
14 18511 Adapter Plate (333PBI) 1
15 18512 3/8" - 16 x 0.875" SS HHCS (333PBI) 4
Not Shown 16751 Bracket Shim Set 1
Not Shown 16752 Impeller Shim 1
Not Shown 18033 Handle 1
Not Shown 18034 5/8" SS Jam Nut 1
16 16001 Outlet Flange 1
17 16003 Inlet Flange 1
18 16706 FKM (viton type) Inlet Gasket with Check 1
19 16011 FKM (viton type) Outlet Gasket 1
20 13777 3/4" Plug 2
21 18027 3/8" - 16 x 1.50" HHCS (333PIH13) 8
22 V20018 3/8" SS Lock Washer 8
23 13778 O-Ring 2
