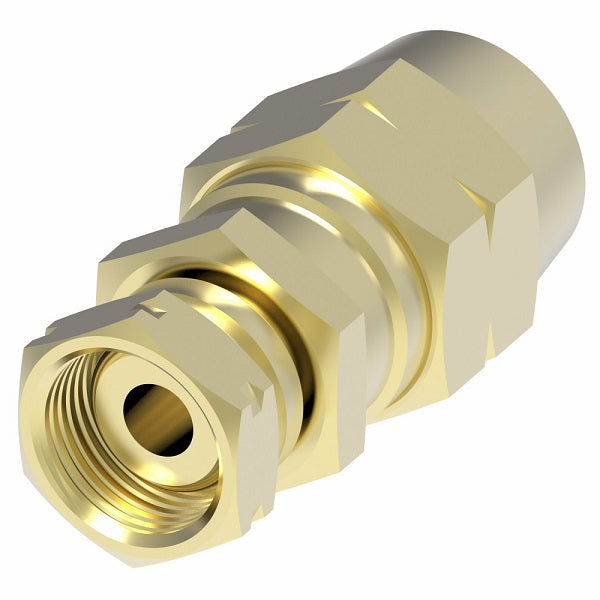

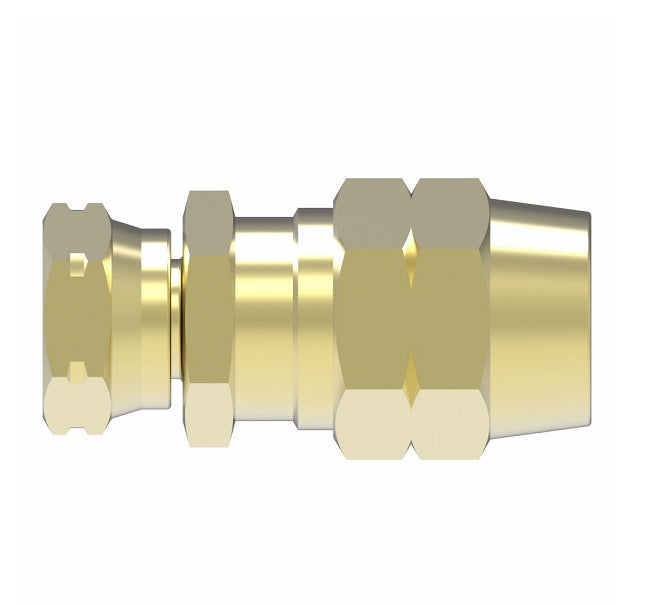

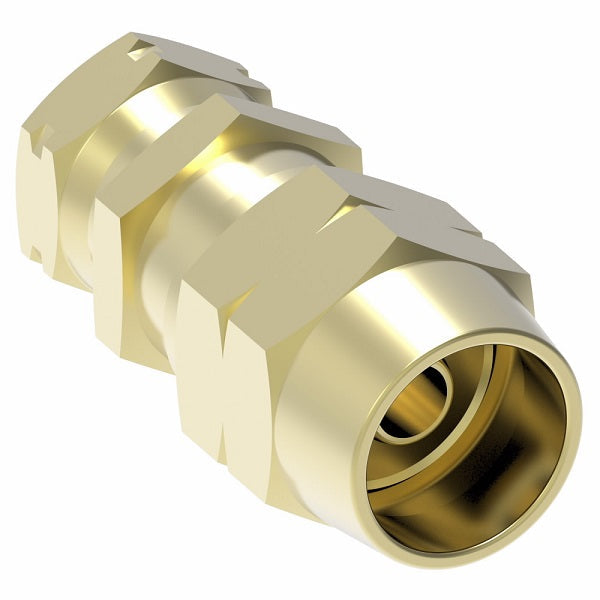

33806B-Y76 Weatherhead by Danfoss | Female Connector Field Attachable Fitting | 338 'B' Series DOT | -06 Female UNF x -06 Reusable Hose End | Brass
33806B-Y76 Weatherhead by Danfoss | Female Connector Field Attachable Fitting | 338 'B' Series DOT | -06 Female UNF x -06 Reusable Hose End | Brass
33806B-Y76 Weatherhead by Danfoss | Female Connector Field Attachable Fitting | 338 'B' Series DOT | -06 Female UNF x -06 Reusable Hose End | Brass
33806B-Y76 Weatherhead by Danfoss | Female Connector Field Attachable Fitting | 338 'B' Series DOT | -06 Female UNF x -06 Reusable Hose End | Brass

33806B-Y76 Weatherhead by Danfoss | Female Connector Field Attachable Fitting | 338 'B' Series DOT | -06 Female UNF x -06 Reusable Hose End | Brass

$21.23 - $21.23
$21.23
$21.23 - $21.23
$21.23

Weatherhead by Danfoss
DOT Field Attachable Fitting - 338 'B' Series - Female UNF - Straight

For air brake hose lines.

Can be used for nearly any air brake line. Easy to assemble. Brass material offers excellent resistance against corrosion.
Specifications for Variant SKU: 33806B-Y76 Danfoss
Shape (Orientation): Straight
Material(s): Brass
Compatible with the following Series: EC038 Series
Notes:
  • Pressure: Determined by maximum working pressure for hose size.
  • Parts are stamped with DOT.
  • Label Set: FS-800
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
Material:
  • CA360 Brass
Compatible Hose:
  • EC038
Assembly instructions:
  • 1. Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward Fitting.
  • 2. Push hose into Fitting until it bottoms.
  • 3. Screw nut until contact is made with body hex.
Part Number Hose I.D. ABS Thread Size Overall Length Hose Cut-Off Factor
33806B-Y76 3/8" 3/4-20 2.40" 0.88
33808B-Y78 1/2" 7/8-20 2.37" 0.88

Steel Nut

Note: Drawings may differ from actual parts.
