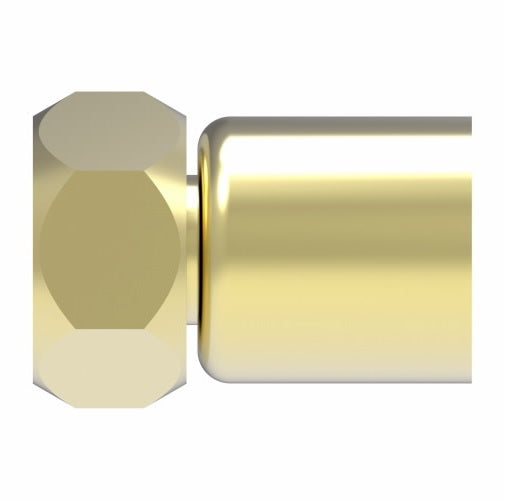

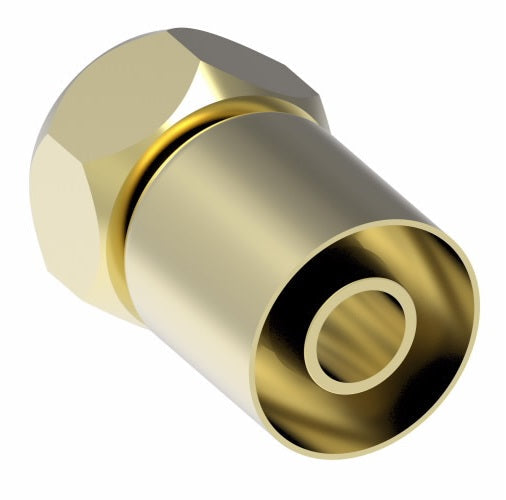

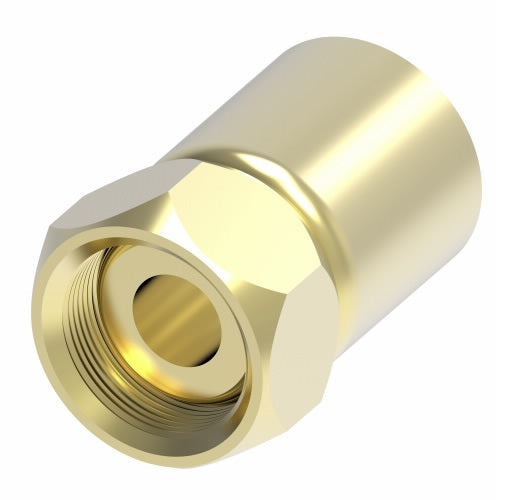

33806P-Y76 Weatherhead by Danfoss | 338 'P' Series | Air Brake Swivel Crimp Fitting | -06 Air Brake End x -06 Hose Barb | Brass

33806P-Y76 Weatherhead by Danfoss | 338 'P' Series | Air Brake Swivel Crimp Fitting | -06 Air Brake End x -06 Hose Barb | Brass

Name: 33806P-Y76 Weatherhead by Danfoss | 338 'P' Series | Air Brake Swivel Crimp Fitting | -06 Air Brake End x -06 Hose Barb | Brass
Brand: Danfoss/Eaton
SKU: 33806P-Y76 Danfoss
Price: 14.31 USD
Availability: InStock

$14.31 - $14.31

$14.31

$14.31 - $14.31

$14.31

Weatherhead by Danfoss
Coll-O-Crimp 338 'P' Series Crimp Fitting - Air Brake Swivel - Straight

Quantity

Specifications for Variant SKU: 33806P-Y76 Danfoss
Brand:	Weatherhead
Series:	338 'P' Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Swivel
Compatible with the following Series:	EC038 Series

Applications:
Air brake hose lines.
Advantages:
A permanent hose end saves time and is easy to assemble. Brass material offers excellent resistance against corrosion.
Pressure:
Determined by hose burst pressure.
Material:
CA360 Brass
Compatible Hose:
EC038

	Componentry
	1. Brass collar
	2. Brass insert. Male pipe or brass swivel insert with brass SAE nut.
	3. Brass A.B.S. insert with steel A.B.S. swivel nut.


Brass Part Number	Hose I.D.	ABS Size	Thread Size	A	Hose Cut-Off Factor	Hole Diameter	Hex F
33806P-Y76	3/8"	3/8"	3/4-20	1.38"	1.00"	0.28"	7/8"
33808P-Y76	1/2"	3/8"	3/4-20	1.38"	1.00"	0.28"	7/8"
33808P-Y78	1/2"	1/2"	7/8-20	1.44"	1.00"	0.38"	1"

Note: Drawings may differ from actual parts.
