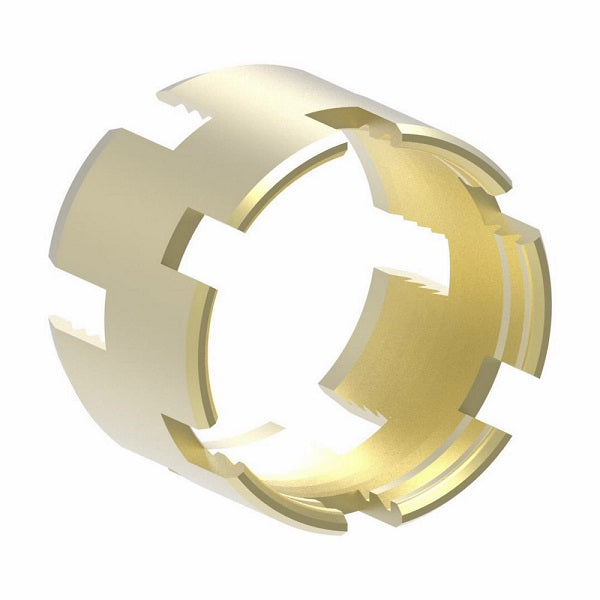

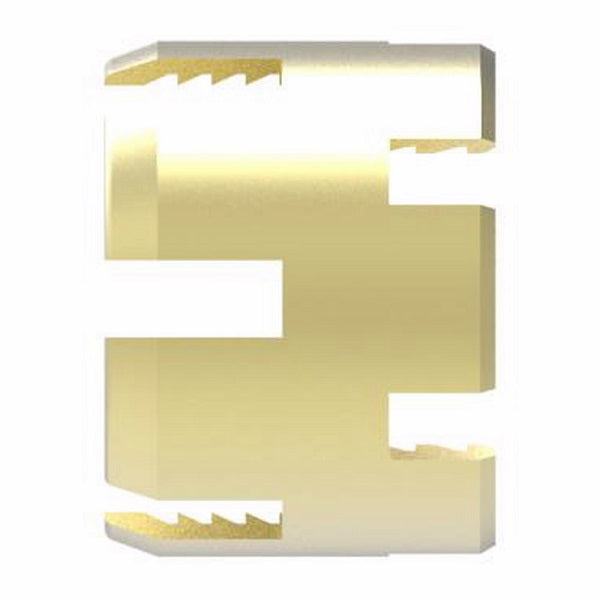

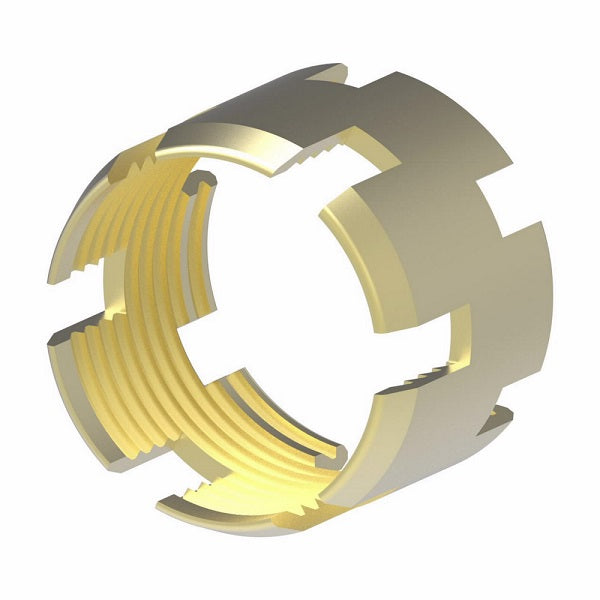

33808-A Weatherhead by Danfoss | Sleeve for Field Attachable Fitting | 338 'B' Series DOT | -08 Hose ID | Brass

33808-A Weatherhead by Danfoss | Sleeve for Field Attachable Fitting | 338 'B' Series DOT | -08 Hose ID | Brass

Name: 33808-A Weatherhead by Danfoss | Sleeve for Field Attachable Fitting | 338 'B' Series DOT | -08 Hose ID | Brass
Brand: Danfoss/Eaton
SKU: 33808-A Danfoss
Price: 5.57 USD
Availability: InStock

$5.57 - $5.57

$5.57

$5.57 - $5.57

$5.57

Weatherhead by Danfoss
DOT Field Attachable Fitting - 338 'B' Series - Sleeve

For air brake hose lines.

Can be used for nearly any air brake line. Easy to assemble. Brass material offers excellent resistance against corrosion.

Quantity

Specifications for Variant SKU: 33808-A Danfoss
Shape (Orientation):	No Orientation
Material(s):	Brass
Compatible with the following Series:	EC038 Series

Notes:
Pressure: Determined by maximum working pressure for hose size. Parts are stamped with DOT. Label Set: FS-800 To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
Material:
CA360 Brass
Compatible Hose:
EC038
Assembly instructions:
1. Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward Fitting. 2. Push hose into Fitting until it bottoms. 3. Screw nut until contact is made with body hex.

Part Number	Hose I.D.
33806-A	3/8"
33808-A	1/2"

Note: Drawings may differ from actual parts.
