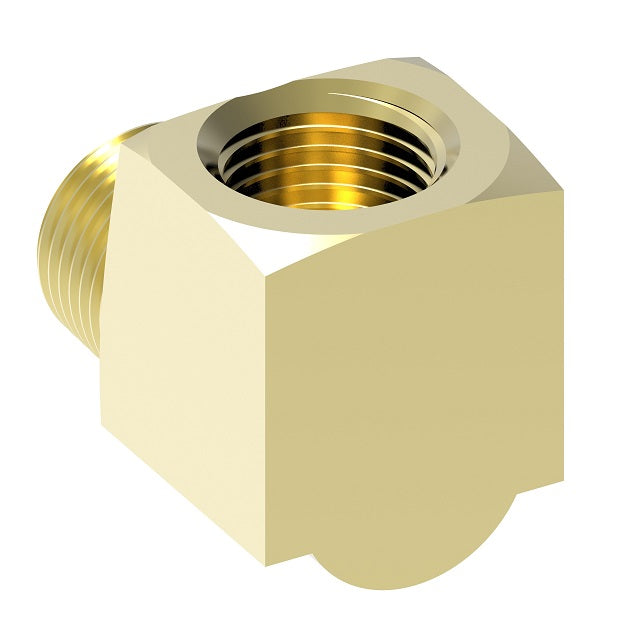

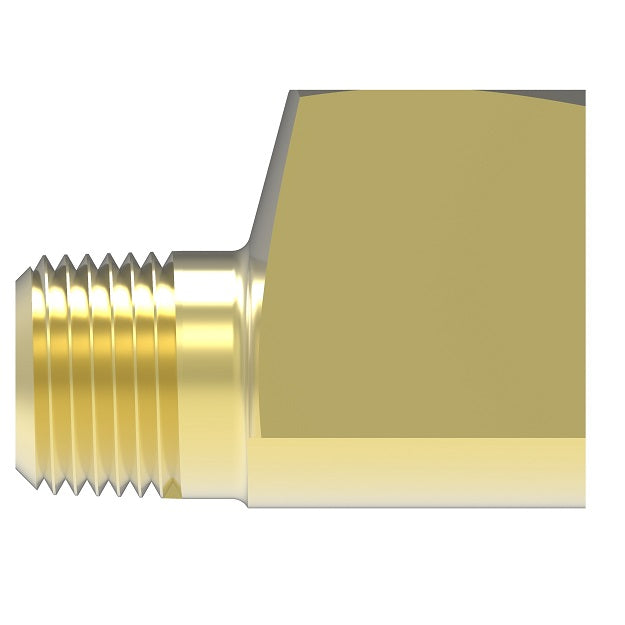

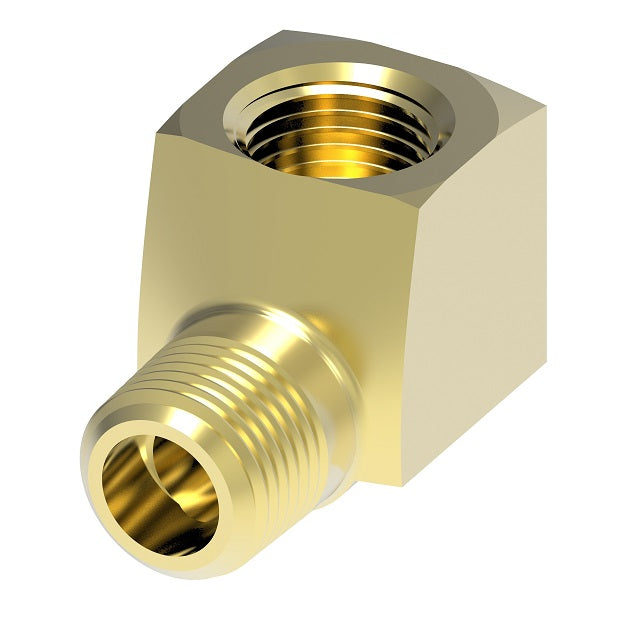

3400X6Z by Danfoss | Pipe Adapter | 90° Street Elbow (with Sealant) | 3/8" Female NPTF x 3/8" Male NPTF | Brass
3400X6Z by Danfoss | Pipe Adapter | 90° Street Elbow (with Sealant) | 3/8" Female NPTF x 3/8" Male NPTF | Brass
3400X6Z by Danfoss | Pipe Adapter | 90° Street Elbow (with Sealant) | 3/8" Female NPTF x 3/8" Male NPTF | Brass
3400X6Z by Danfoss | Pipe Adapter | 90° Street Elbow (with Sealant) | 3/8" Female NPTF x 3/8" Male NPTF | Brass

3400X6Z by Danfoss | Pipe Adapter | 90° Street Elbow (with Sealant) | 3/8" Female NPTF x 3/8" Male NPTF | Brass

$8.81 - $8.81
$8.81
$8.81 - $8.81
$8.81

Aeroquip® by Danfoss
Pipe Adapter - Street Elbow
Specifications for Variant SKU: 3400X6Z Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female NPTF, 3/8in Male NPTF
Material(s): Brass
Applications:
  • Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
  • Dryseal pipe threads (NPTF).
  • Fair Vibration Resistance.
Used With:
  • Brass, bronze and iron pipe.
Material:
  • CA360 Brass.
Operating Pressure:
  • Operating pressure up to 1200 psi.
Temperature Range:
  • -65°F to +250°F
    (-53°C to +121°C).
Conformance:
  • Ref. SAE No. 130239
  • Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14
Brass
Part Number 		Brass
with Sealant
Part Number 		Male Pipe
Thread		 Female Pipe
Thread		 C D E N N1
3400X2 3400X2Z 1/8" 1/8" 9/16" 0.219" 0.25" 0.66" 0.47"
3400X2W 3400X2WZ 1/8"* 1/8"** 1/2" 0.188" 0.25" 0.57" 0.34"
3400X4 3400X4Z 1/4" 1/8" 11/16" 0.219" - 0.72" 0.53"
3400X4W 3400X4WZ 1/4"* 1/4"** 11/16" 0.266" 0.36" 0.78" 0.45"
3400X4X2 3400X4X2Z 1/4" 1/4" 11/16" 0.312" - 0.91" 0.72"
3400X6 3400X6Z 3/8" 3/8" 13/16" 0.438" - 0.98" 0.72"
3400X8 3400X8Z 1/2" 1/2" 1" 0.562" - 1.25" 1.04"
3400X12 3400X12Z 3/4" 3/4" 1-1/4" 0.750" - 1.38" 1.12"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
