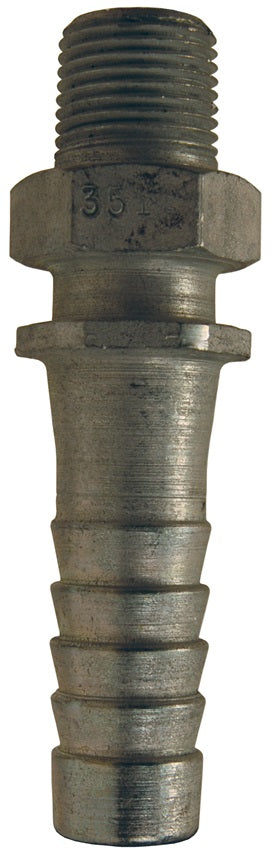

3512 by Dixon Valve | 3500 Nipple | 1/2" Male NPT x 1/2" Hose ID | Zinc Plated Steel

3512 by Dixon Valve | 3500 Nipple | 1/2" Male NPT x 1/2" Hose ID | Zinc Plated Steel

Save $4.86 Save $4.86
$12.15
$12.15 - $12.15
$12.15
$7.29
$7.29 - $7.29
$7.29

Dixon Valve & Coupling
3500 Male NPT Nipple

For air and water service only.
Specifications for Variant SKU: 3512 Dixon
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPT, 1/2in Male NPT
Material(s): Zink-Plated Steel
Specifications:
  • Working pr essure: 600 PSI at ambient temperature 70°F (21°C).
Material:
  • Zinc Plated Steel
Safety Notes:
  • The constant vibration created by air tools, like air drills and pavement breakers, is destructive to air hose couplings, especially the quick-acting type. To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose.
  • To construct a whip hose, connect one end of a short (3' to 10') air hose to the air tool using a 3500 type steel nipple. Connect the other end of the hose to the air supply using the standard quick-acting coupling. The heat treated 3500 nipple will withstand vibration far better than the standard coupling and provide a safer connection. The whip hose should remain permanently connected to the tool.
Zinc Plated Steel
Part Number		 Hose Size Male NPT
3501 1/4" 1/8"
3502 1/4" 1/4"
3504 1/4" 3/8"
3505 3/8" 1/4"
3506 3/8" 3/8"
3508 3/8" 1/2"
3509 1/2" 1/4"
3510 1/2" 3/8"
3512 1/2" 1/2"
3511 1/2" 3/4"
3513 3/4" 1/2"
3514 3/4" 3/4"
3515 3/4" 1"
3516 1" 3/4"
3518 1" 1"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
