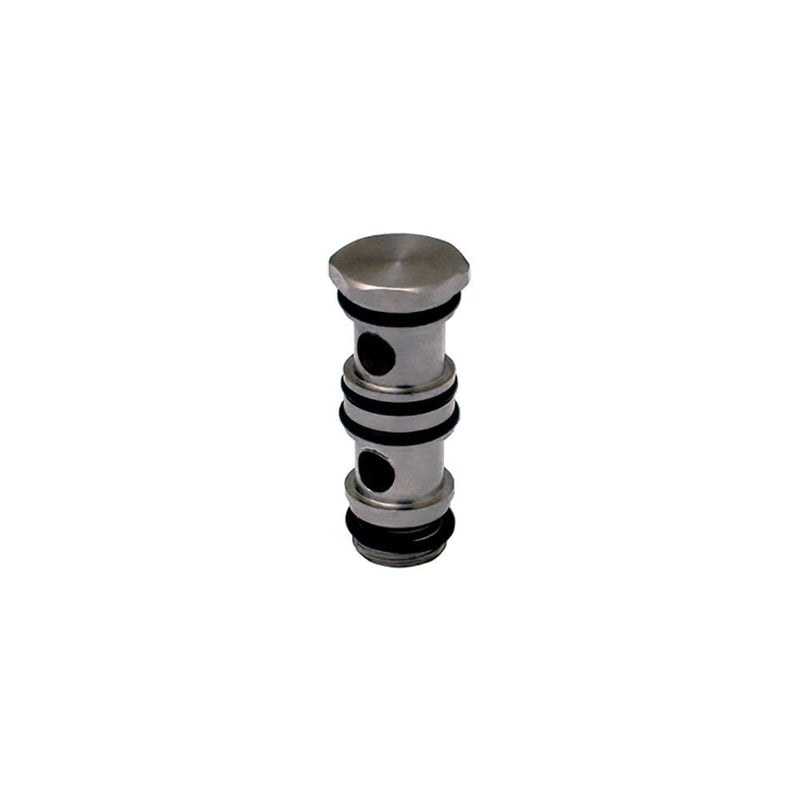

3528 00 17 by Parker | Legris Modular Fittings | 3/8" Male BSPP Thread | 2 Stack Banjo Bolts | Nickel-Plated Brass | Pack of 10

Save $15.36

$168.92

$168.92 - $168.92

$168.92

$153.56

$153.56 - $153.56

$153.56

by Parker Hannifin
LF 3000® Push-In Fittings / Modular Banjo Fittings:3528 Stacking Banjo for 2 Body High Modules, Male BSPP and Metric Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3528 00 17 Parker \| 10 \|
Series:	3528 Series
Shape (Orientation):	Banjo
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Screwed from above, for minimum space between connections 360° orientable Stacking of banjo bodies to allow construction of 2 to 6 outlets
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Bolt: Nickel-plated brass, with or without pre-coating, depending on the configuration Body: Technical Polymer O-Ring: NBR Release Button Technical Polymer


Part Number	C	F	H	H1	H2	Kg
3528 00 19*	M5x0.8	-	24.5 mm	7.5 mm	18.5 mm	.005 Kg
3528 00 10	1/8"	13 mm	31 mm	7.5 mm	22 mm	.017 Kg
3528 00 13	1/4"	17 mm	39 mm	9.5 mm	27.5 mm	.031 Kg
3528 00 17	3/8"	20 mm	46 mm	11 mm	32.5 mm	.053 Kg

*With screwdriver slot

Full bore

Designed for use with 2 banjo bodies
