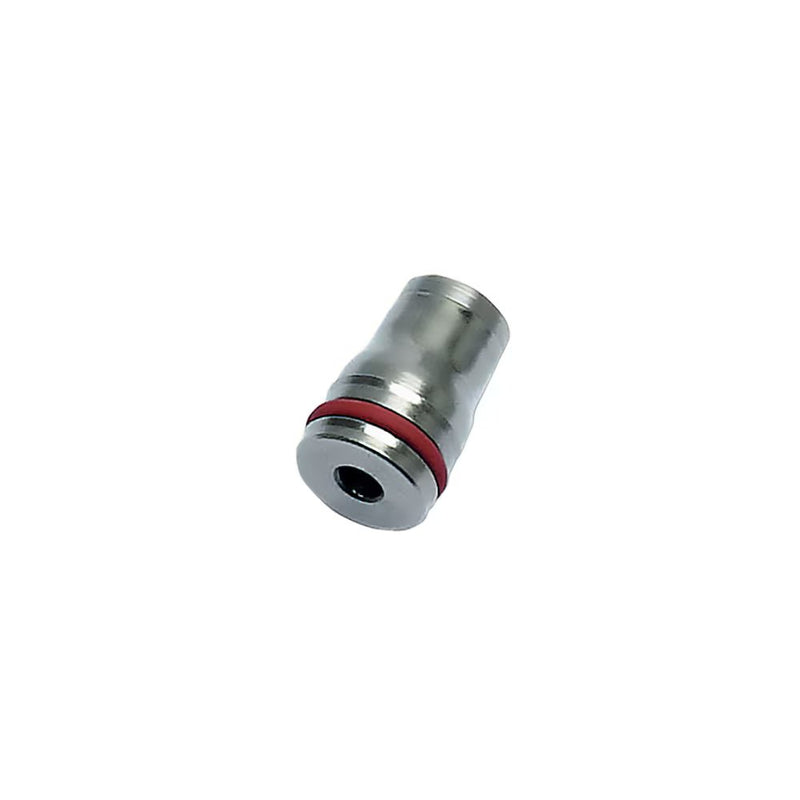

3600 12 00 by Parker | Legris Cartridge | 12 mm Tube Size | 25 mm Length | Nickel-Plated Brass

3600 12 00 by Parker | Legris Cartridge | 12 mm Tube Size | 25 mm Length | Nickel-Plated Brass | Pack of 10

Save $10.82 Save $10.82
$119.06
$119.06 - $119.06
$119.06
$108.24
$108.24 - $108.24
$108.24

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3600 Cartridge

Package Quantity: 10 Units

Specifications for Variant SKU: 3600 12 00 Parker | 10 |
Series: 3600 Series
Shape (Orientation): No Orientation
Material(s): Nickel-Plated Brass
Seal Material(s): FKM
Special Properties: Food Grade, Silicone Free
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD G G1 H H1 H2 N Kg
3600 04 00 4 mm 9.8 mm 8 mm 17 mm 8.5 mm 8.5 mm 11 mm .006 Kg
3600 06 00 6 mm 12.1 mm 10 mm 19 mm 10.5 mm 8.5 mm 13.5 mm .009 Kg
3600 08 00 8 mm 14.8 mm 13 mm 21 mm 12.5 mm 8.5 mm 16 mm .012 Kg
3600 10 00 10 mm 17.5 mm 15 mm 24.5 mm 14 mm 10.5 mm 20 mm .019 Kg
3600 12 00 12 mm 20 mm 17 mm 25 mm 14.5 mm 10.5 mm 22.5 mm .023 Kg
