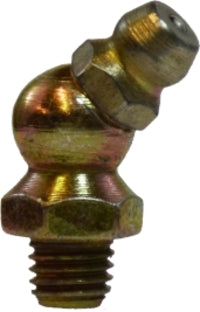

36146SS (36-146SS) Midland Grease Fitting - Short 45° Ball Check - 1/4"-28 Male Taper - 303 Stainless Steel

36146SS by Midland | Grease Fitting | Short Ball Check | 1/4"-28 Male Taper | 45° Elbow | 303 Stainless Steel

Save $2.43

$6.07

$6.07 - $6.07

$6.07

$3.64

$3.64 - $3.64

$3.64

Midland Industries
Brass Fitting - Grease Fitting - Short 45° Ball Check

Inventory @ Manufacturers Warehouse: 70 Units

Specifications for Variant SKU: 36146SS Midland
Shape (Orientation):	45 Degree
Material(s):	303 Stainless Steel
Applicable Specs & Approvals:	SAE J-534C

SPECIFICATIONS

SAE Rating:	Meets SAE #J-534C	Conformance:	Exceeds 12HR Salt
Pressure:	Max. 8000 PSI

Crossover Series:
#637	1637	2445	1665	2465	3010	5210


Part Number	Material	Size	A	B	Hex	Approx. Weight (Lbs.)
36146 (36-146)	Brass	1/4"-28 Taper Thread	0.82"	0.20"	0.375"	0.02
36146SS (36-146SS)	303 Stainless Steel	1/4"-28 Taper Thread	0.81"	0.20"	0.375"	0.02

Dimension Data can change without notice.
