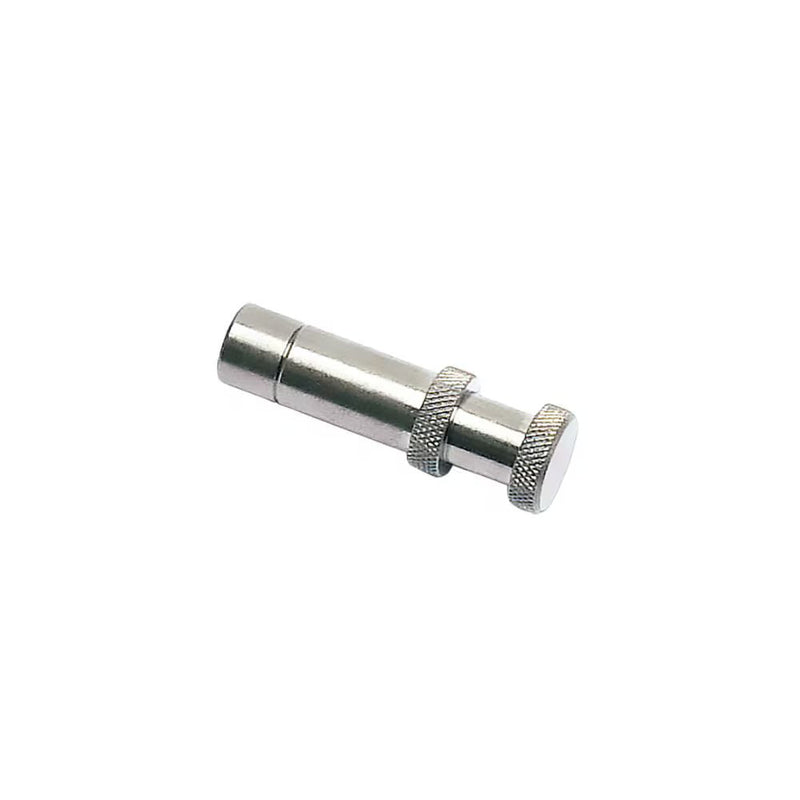

3626 08 00 by Parker | Legris Blanking Plug | 8 mm Tube Size | 33 mm Length | Nickel-Plated Brass

3626 08 00 by Parker | Legris Blanking Plug | 8 mm Tube Size | 33 mm Length | Nickel-Plated Brass | Pack of 10

Save $10.78 Save $10.78
$48.25
$48.25 - $48.25
$48.25
$37.47
$37.47 - $37.47
$37.47

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Accessories :3626 Blanking Plug

Package Quantity: 10 Units

Specifications for Variant SKU: 3626 08 00 Parker | 10 |
Series: 3626 Series
Shape (Orientation): No Orientation
Material(s): Nickel-Plated Brass
Special Properties: Food Grade, Silicone Free
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD G L L1 L2 Kg
3626 04 00 4 mm 6 mm 25.5 mm 17.5 mm 11.5 mm .004 Kg
3626 06 00 6 mm 8 mm 30.5 mm 19.5 mm 13.5 mm .009 Kg
3626 08 00 8 mm 10 mm 33 mm 20 mm 16 mm .009 Kg
3626 10 00 10 mm 12 mm 40 mm 25 mm 18 mm .015 Kg
3626 12 00 12 mm 14 mm 43 mm 26 mm 20 mm .021 Kg
3626 14 00 14 mm 16 mm 47 mm 28 mm 22.5 mm .029 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
