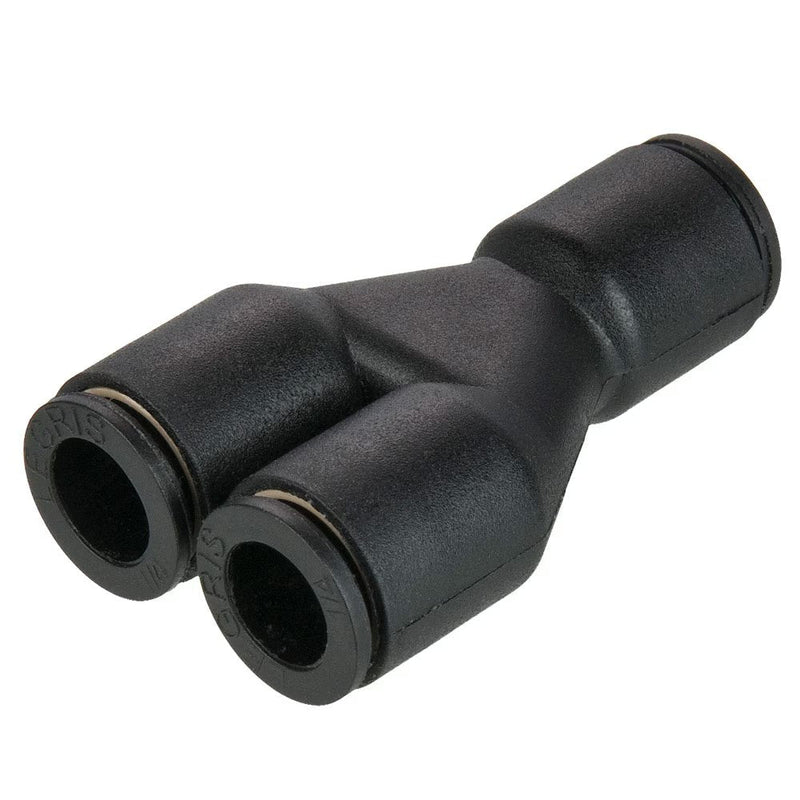

362PLP-4M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Tube to Tube Fittings | 4mm Union Tube Size | 28.5mm Length (L) | Y | Glass-Reinforced Nylon | Pack of 10

Minimum Order Quantity: 5 Units

Save $27.01

$67.52

$67.52 - $67.52

$67.52

$40.51

$40.51 - $40.51

$40.51

by Parker Hannifin
Push-to-Connect Fittings:362PLP Union Y

Package Quantity: 10 Units

Specifications for Variant SKU: 362PLP-4M Parker \| 10 \|
Series:	362PLP Series
Shape (Orientation):	Y
Material(s):	Glass-Reinforced Nylon
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size 1	Tube Size 2	H	L	N
362PLP-4M	4 mm	4 mm	17.5 mm	28.5 mm	9.0 mm
362PLP-6M	6 mm	6 mm	21.5 mm	35.0	11.0
362PLP-8M	8 mm	8 mm	28.0 mm	45.0	14.5
362PLP-10M	10 mm	10 mm	33.0 mm	53.0	17.0
362PLP-12M	12 mm	12 mm	39.0 mm	57.0	20.0
362PLP-4M-6M	4 mm	6 mm	17.5 mm	33.0	9.0
362PLP-6M-8M	6 mm	8 mm	22.5 mm	41.0	11.5
362PLP-8M-10M	8 mm	10 mm	28.0 mm	47.0	14.5
362PLP-10M-12M	10 mm	12 mm	33.0 mm	57.0	17.0
