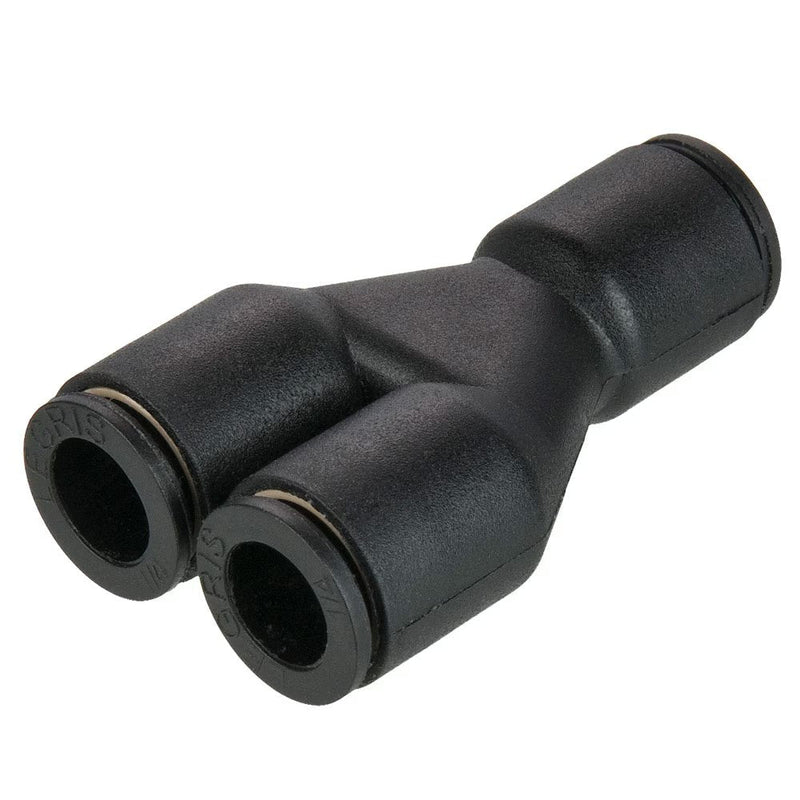

362PLP-8 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Tube to Tube Fittings | 1/2" Union Tube Size | 2.64" Length (L) | Y | Glass-Reinforced Nylon | Pack of 10

362PLP-8 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Tube to Tube Fittings | 1/2" Union Tube Size | 2.64" Length (L) | Y | Glass-Reinforced Nylon | Pack of 10

Save $11.46 Save $11.46
$126.07
$126.07 - $126.07
$126.07
$114.61
$114.61 - $114.61
$114.61

by Parker Hannifin
Push-to-Connect Fittings:362PLP Union Y

Package Quantity: 10 Units

Specifications for Variant SKU: 362PLP-8 Parker | 10 |
Series: 362PLP Series
Shape (Orientation): Y
Material(s): Glass-Reinforced Nylon
Special Properties: Corrosion Resistance, Chemical Resistance, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size 1 Tube Size 2 L H N
362PLP-2 1/8" 1/8" 1.12" .69" .35"
362PLP-2-4 1/8" 1/4" 1.42" .87" .45"
362PLP-4M-4 5/32" 1/4" 1.42" .87" .45"
362PLP-4 1/4" 1/4" 1.42" .87" .45"
362PLP-4-6 1/4" 3/8" 2.02" 1.30" .67"
362PLP-6 3/8" 3/8" 2.09" 1.30" .67"
362PLP-8 1/2" 1/2" 2.64" 1.70" .91"
