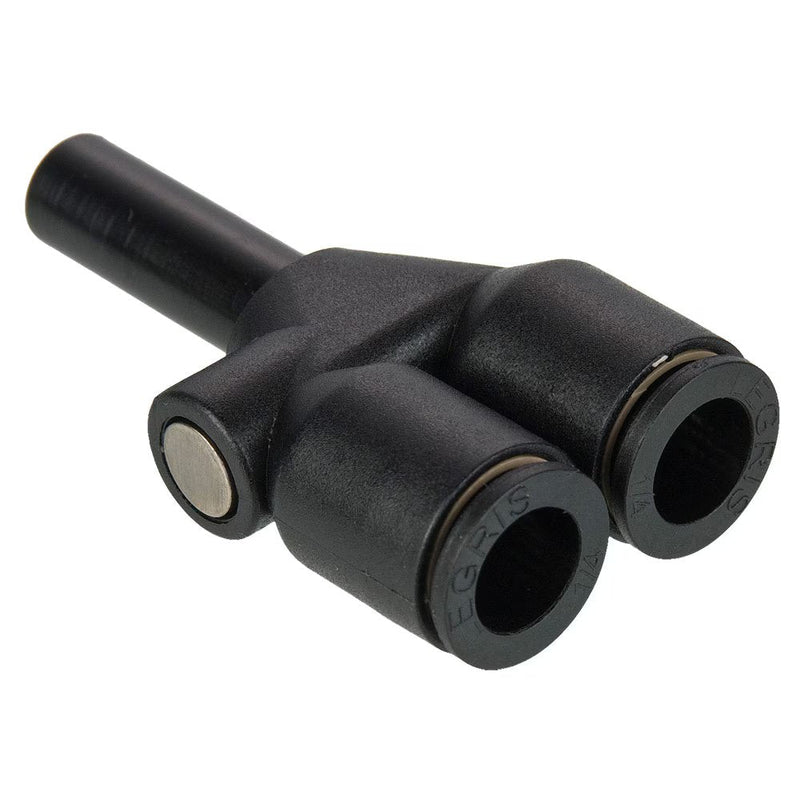

362PLPSP-2 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 1/8" Tube Size | 1.36" Length (L) | Y | Glass-Reinforced Nylon | Pack of 10

Save $33.69

$84.22

$84.22 - $84.22

$84.22

$50.53

$50.53 - $50.53

$50.53

by Parker Hannifin
Push-to-Connect Fittings:362PLPSP Plug-In Y

Package Quantity: 10 Units

Specifications for Variant SKU: 362PLPSP-2 Parker \| 10 \|
Series:	362PLPSP Series
Shape (Orientation):	Y
Material(s):	Glass-Reinforced Nylon
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size 1	Tube Size 2	L	L1	N
362PLPSP-2	1/8"	1/8"	1.36"	1.00"	.35"
362PLPSP-4	1/4"	1/4"	1.60"	1.02"	.45"
362PLPSP-6	3/8"	3/8"	2.23"	1.42"	.67"
