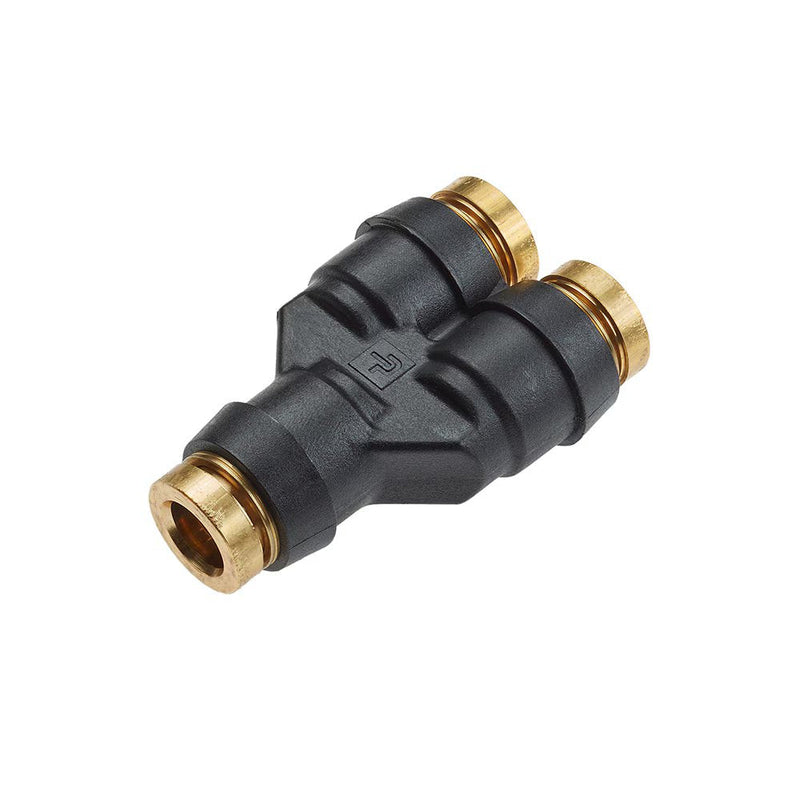

362PTC-6-8-8 by Parker | Tube to Tube Fitting | Unequal Union | 3/8" Push-to-Connect x 1/2" Push-to-Connect x 1/2" Push-to-Connect | 2.20" Length | Y | Composite

362PTC-6-8-8 by Parker | Tube to Tube Fitting | Unequal Union | 3/8" Push-to-Connect x 1/2" Push-to-Connect x 1/2" Push-to-Connect | 2.20" Length | Y | Composite | Pack of 100

Save $1,380.45 Save $1,380.45
$3,451.12
$3,451.12 - $3,451.12
$3,451.12
$2,070.67
$2,070.67 - $2,070.67
$2,070.67

by Parker Hannifin
PTC & PTCR Composite Fittings:Unequal Union Y 362PTC

Package Quantity: 100 Units

Specifications for Variant SKU: 362PTC-6-8-8 Parker | 100 |
Series: 362PTC Series
Shape (Orientation): Y
Material(s): Composite, Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Brass Collet
  • HNBR O-ring
  • Stainless Steel Tube Support or Brass
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Composite Body – Strong, Lightweight, Compact and Impact Resistant
  • Plug-in configurations
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
  • Cab Controls
Specification:
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size L N N1 N2
362PTC-4-6 3/8" 1.97" 1.43" 1/4" 1/4"
362PTC-4-6-6 3/8" 2.03" 1.43" 1/4" 3/8"
362PTC-4-6-8 1/2" 2.14" 1.43" 1/4" 3/8"
362PTC-6-8-8 1/2" 2.20" 1.75" 1/2" 3/8"
