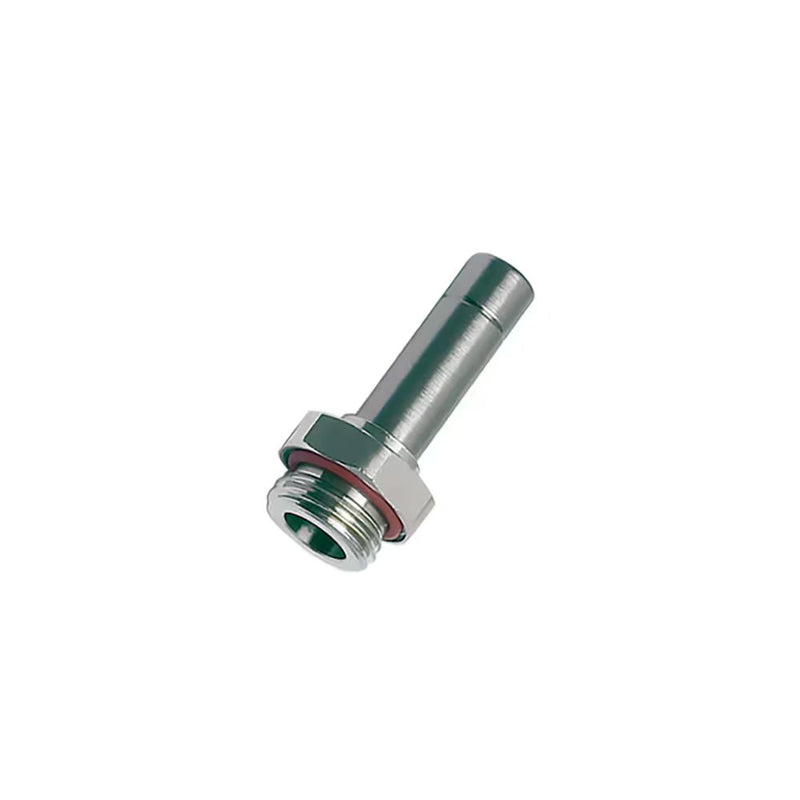

3631 04 10 by Parker | Legris Stud Standpipe | 4 mm Tube Size x 1/8" Male BSPP Thread | 13 mm Hex | 24.5 mm Length | Straight | Nickel=Plated Brass | Pack of 10

Save $81.30

$203.25

$203.25 - $203.25

$203.25

$121.95

$121.95 - $121.95

$121.95

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3631 Stud Standpipe, Male BSPP and Metric Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 3631 04 10 Parker \| 10 \|
Series:	3631 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free

Technical Characteristics:	Suitable Fluids: Compressed air, grease, lubricant, water Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639) Working Temperature: -25°C to +150°C
Advantages:	Wide range of working temperatures: up to +150°C Wide range of working pressures: from vacuum up to 30 bar Materials conform to FDA standards Extended chemical compatibility
Regulations:	RoHS REACH PED
Component Materials:	Body: FDA chemical nickel-plated brass Adapter: FDA Chemical nickel-plated brass Collet: FDA Chemical nickel-plated brass Washer: Stainless Steel 316L O-Ring: Fluoroelastomer (FKM)


Part Number	ØD	C	E	F	H	H1	Kg
3631 04 19	4 mm	M5x0.8	3.5 mm	13 mm	21.5 mm	7 mm	.003 Kg
3631 04 10	4 mm	1/8"	4.5 mm	13 mm	20 mm	7 mm	.007 Kg
3631 04 13	4 mm	1/4"	5.5 mm	8 mm	20 mm	7.5 mm	.011 Kg
3631 06 10	6 mm	1/8"	4.5 mm	13 mm	22.5 mm	6.5 mm	.009 Kg
3631 06 13	6 mm	1/4"	5.5 mm	16 mm	22.5 mm	6.5 mm	.012 Kg
3631 08 10	8 mm	1/8"	4.5 mm	13 mm	22.5 mm	6.5 mm	.010 Kg
3631 08 13	8 mm	1/4"	5.5 mm	16 mm	23 mm	6.5 mm	.013 Kg
3631 08 17	8 mm	3/8"	5.5 mm	20 mm	23 mm	7.5 mm	.018 Kg
3631 10 13	10 mm	1/4"	5.5 mm	16 mm	28 mm	6.5 mm	.015 Kg
3631 10 17	10 mm	3/8"	5.5 mm	20 mm	28 mm	7.5 mm	.022 Kg
3631 10 21	10 mm	1/2"	7 mm	24 mm	28 mm	7.5 mm	.028 Kg
3631 12 17	12 mm	3/8"	5.5 mm	20 mm	29 mm	7.5 mm	.023 Kg
3631 12 21	12 mm	1/2"	7 mm	7 mm	24 mm	29 mm	.033 Kg
3631 14 21	14 mm	1/2"	7 mm	24 mm	31 mm	8 mm	.033 Kg
