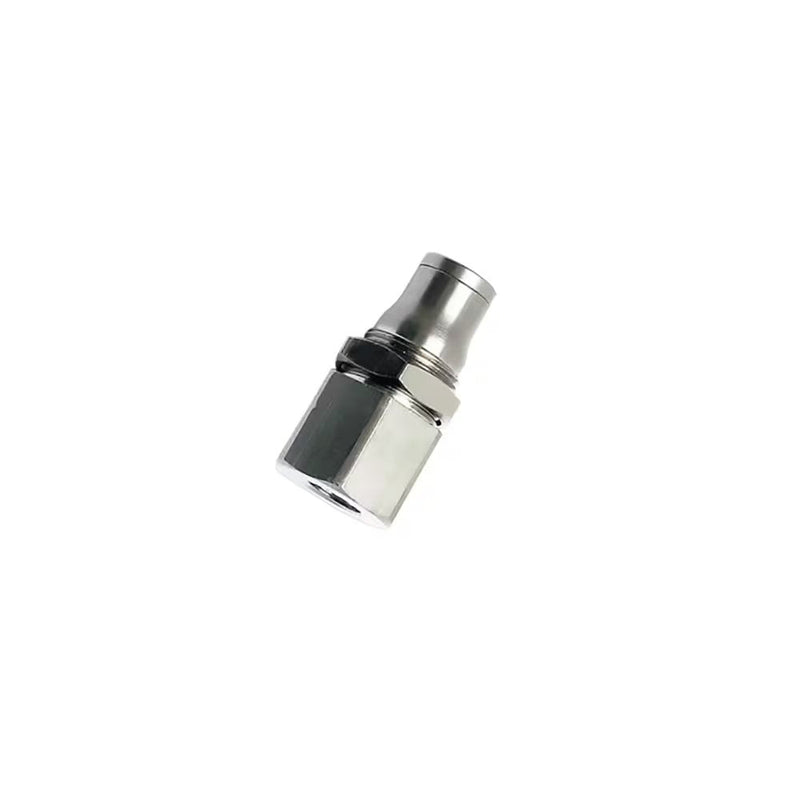

3636 12 17 by Parker | Legris Bulkhead Connector | 12 mm Tube Size x 3/8" Female BSPP Thread | 24 mm Hex | 43 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Save $11.14

$122.53

$122.53 - $122.53

$122.53

$111.39

$111.39 - $111.39

$111.39

by Parker Hannifin
LF 3000® Push-In Fittings / Bulkhead Connector Fittings :3636 Bulkhead Connector, Female BSPP Thread

Package Quantity: 5 Units

Quantity

Specifications for Variant SKU: 3636 12 17 Parker \| 5 \|
Series:	3636 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free

Technical Characteristics:	Suitable Fluids: Compressed air, grease, lubricant, water Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639) Working Temperature: -25°C to +150°C
Advantages:	Wide range of working temperatures: up to +150°C Wide range of working pressures: from vacuum up to 30 bar Materials conform to FDA standards Extended chemical compatibility
Regulations:	RoHS REACH PED
Component Materials:	Body: FDA chemical nickel-plated brass Adapter: FDA Chemical nickel-plated brass Collet: FDA Chemical nickel-plated brass Washer: Stainless Steel 316L O-Ring: Fluoroelastomer (FKM)


Part Number	ØD	C	E	F1	F2	H	H1	K	ØT (Min)	Kg
3636 04 10	4 mm	1/8"	8.5 mm	14 mm	14 mm	30.5 mm	11 mm	15 mm	13 mm	.020 Kg
3636 06 10	6 mm	1/8"	8.5 mm	17 mm	17 mm	33 mm	11 mm	18.5 mm	15 mm	.033 Kg
3636 06 13	6 mm	1/4"	11.5 mm	17 mm	17 mm	37 mm	15 mm	18.5 mm	15 mm	.033 Kg
3636 08 10	8 mm	1/8"	8.5 mm	19 mm	19 mm	34 mm	10.5 mm	21 mm	17 mm	.044 Kg
3636 08 13	8 mm	1/4"	11.5 mm	19 mm	19 mm	38 mm	14.5 mm	21 mm	17 mm	.044 Kg
3636 10 17	10 mm	3/8"	12 mm	22 mm	27 mm	42.5 mm	16 mm	24 mm	21 mm	.073 Kg
3636 12 17	12 mm	3/8"	12 mm	24 mm	24 mm	43 mm	16 mm	26 mm	23 mm	.077 Kg
3636 12 21	12 mm	1/2"	16 mm	27 mm	24 mm	48.5 mm	21.5 mm	29.5 mm	23 mm	.133 Kg
