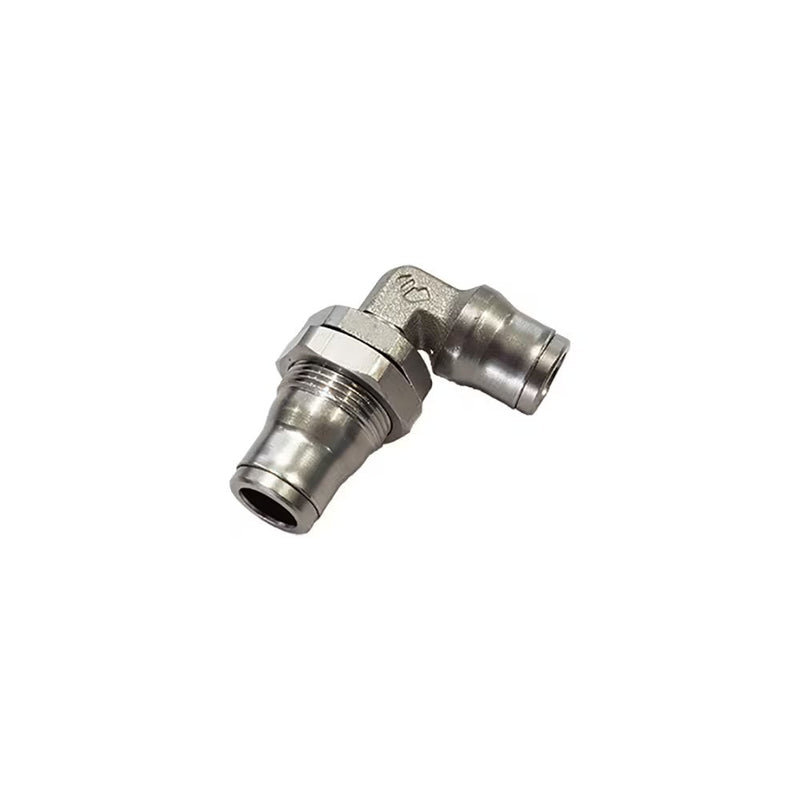

3639 08 00 by Parker | Legris Bulkhead Swivel Connector | 8 mm Tube Size | 19 mm Hex | 44 mm Length | 90° Elbow | Nickel-Plated Brass | Pack of 10

Save $30.29

$333.23

$333.23 - $333.23

$333.23

$302.94

$302.94 - $302.94

$302.94

by Parker Hannifin
LF 3000® Push-In Fittings / Bulkhead Connector Fittings :3639 Equal Bulkhead Elbow

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3639 08 00 Parker \| 10 \|
Series:	3639 Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free, Swivel

Technical Characteristics:	Suitable Fluids: Compressed air, grease, lubricant, water Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639) Working Temperature: -25°C to +150°C
Advantages:	Wide range of working temperatures: up to +150°C Wide range of working pressures: from vacuum up to 30 bar Materials conform to FDA standards Extended chemical compatibility
Regulations:	RoHS REACH PED
Component Materials:	Body: FDA chemical nickel-plated brass Adapter: FDA Chemical nickel-plated brass Collet: FDA Chemical nickel-plated brass Washer: Stainless Steel 316L O-Ring: Fluoroelastomer (FKM)


Part Number	ØD	F1	F2	G	H	K	L	ØT (Min)	Kg
3639 04 00	4 mm	13 mm	14 mm	10 mm	35 mm	14 mm	18 mm	12.5 mm	.023 Kg
3639 06 00	6 mm	16 mm	17 mm	12 mm	40.5 mm	17.5 mm	21.5 mm	15 mm	.035 Kg
3639 08 00	8 mm	18 mm	19 mm	15 mm	44 mm	19.5 mm	23.5 mm	17 mm	.046 Kg
3639 10 00	10 mm	22 mm	27 mm	17.5 mm	51 mm	24 mm	29 mm	21 mm	.080 Kg
3639 12 00	12 mm	24 mm	24 mm	19.5 mm	55 mm	26 mm	31 mm	23 mm	.086 Kg
3639 14 00	14 mm	27 mm	27 mm	21.5 mm	59 mm	29.5 mm	34 mm	25 mm	.144 Kg

The body swivels for positioning purposes. Maxi pressure = 20 bar
