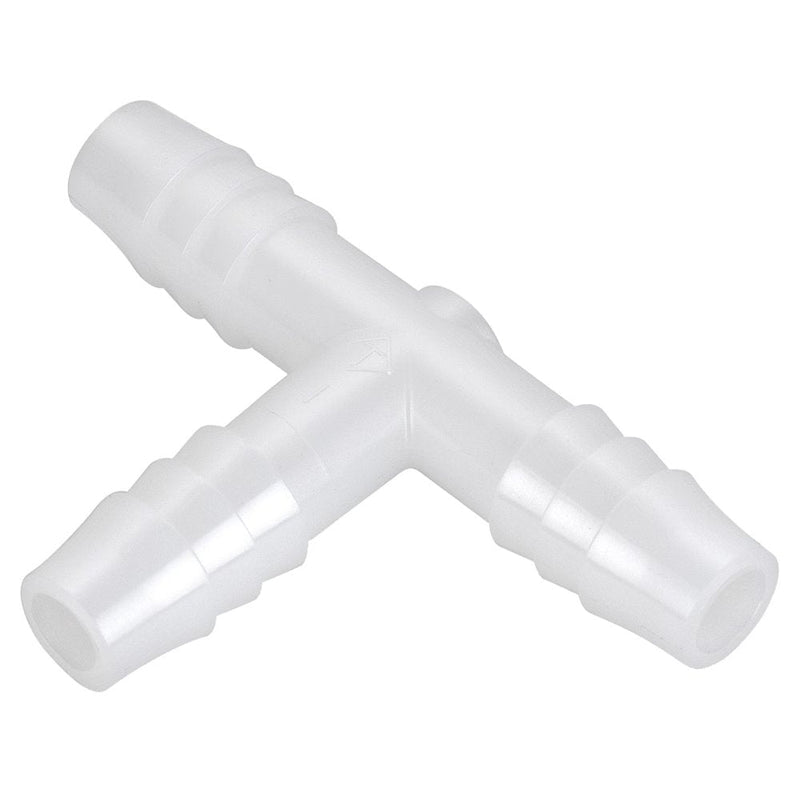

364HB-8-6N by Parker | Tube to Tube Fitting | 1/2" Union Barb x 3/8" Barb | 2.52" Length | Tee | White | Nylon

364HB-8-6N by Parker | Tube to Tube Fitting | 1/2" Union Barb x 3/8" Barb | 2.52" Length | Tee | White | Nylon

Save $0.59 Save $0.59
$1.48
$1.48 - $1.48
$1.48
$0.89
$0.89 - $0.89
$0.89

by Parker Hannifin
Par-Barb® Fittings:Union Tee 364HB
Specifications for Variant SKU: 364HB-8-6N Parker
Brand: Par-Barb®
Series: 364HB Series
Shape (Orientation): Tee
Material(s): Nylon
Special Properties: Water and Beverage
Product Features:
  • Available in black polypropylene and white nylon
  • FDA compliant material
  • NSF/ANSI 51
  • Uniprene washer
  • Up to 1 1/2” sizes
Markets:
  • Water
  • Beverage Dispensing
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • Beverages
  • Cooling Systems
  • Vacuum
Pressure Range: Up to 125 PSI (8.6 bar)
Temperature Range: Nylon: -40° to +200° F (-40° to +93.3° C)
Polypropylene: 0° to +212° F (-12.2° to +100° C)
Compatible Tubing:
  • Vinyl
  • Polyurethane
  • Rubber Hose
White Nylon Part Number Black Polypropylene Part Number Tube Or Hose ID 1-2 Tube Or Hose ID 3 OD 1-2 OD 3 L N Flow Diameter (D)
364HB-3N 364HB-3PP 3/16" 3/16" .25" .25" 1.49" .75" .12"
364HB-4N 364HB-4PP 1/4" 1/4" .32" .32" 1.92" .96" .16"
364HB-5N 364HB-5PP 5/16" 5/16" .36" .36" 2.22" 1.17" .16"
364HB-6-4N 364HB-6-4PP 3/8" 1/4" .44" .31" 2.23" 1.75" .16"
364HB-6N 364HB-6PP 3/8" 3/8" .43" .43" 2.22" 1.18" .16"
364HB-6-8N 364HB-6-8PP 3/8" 1/2" .43" .56" 2.22" 1.27" .25"
364HB-8-6N 364HB-8-6PP 1/2" 3/8" .55" .43" 2.52" 1.27" .25"
364HB-8N 364HB-8PP 1/2" 1/2" .56" .56" 2.52" 1.27" .37"
364HB-10N 364HB-10PP 5/8" 5/8" .66" .66" 2.74" 1.37" .46"
