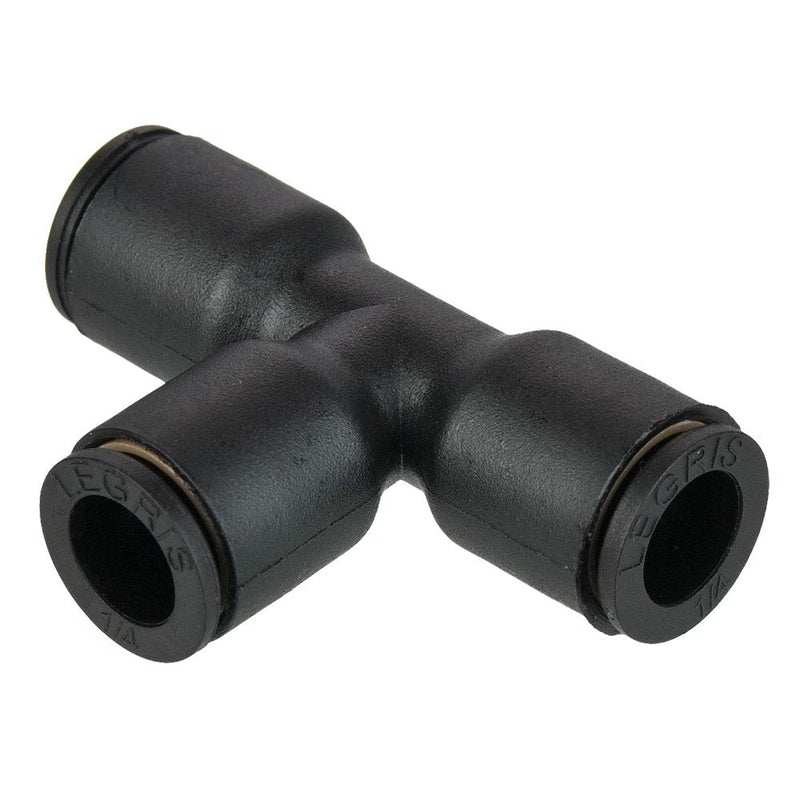

364PLP-12M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Tube to Tube Fittings | 12mm Union Tube Size | 31.0mm Length (L/2) | Tee | Glass-Reinforced Nylon | Pack of 10

364PLP-12M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Tube to Tube Fittings | 12mm Union Tube Size | 31.0mm Length (L/2) | Tee | Glass-Reinforced Nylon | Pack of 10

Save $93.75 Save $93.75
$234.37
$234.37 - $234.37
$234.37
$140.62
$140.62 - $140.62
$140.62

by Parker Hannifin
Push-to-Connect Fittings:364PLP Union Tee

Package Quantity: 10 Units

Specifications for Variant SKU: 364PLP-12M Parker | 10 |
Series: 364PLP Series
Shape (Orientation): Tee
Material(s): Glass-Reinforced Nylon
Special Properties: Corrosion Resistance, Chemical Resistance, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size H L/2
364PLP-3M 3 mm 19.0 mm 14.5 mm
364PLP-4M 4 mm 19.0 mm 14.5 mm
364PLP-6M 6 mm 23.5 mm 18.0 mm
364PLP-8M 8 mm 29.5 mm 23.0 mm
364PLP-10M 10 mm 34.5 mm 26.5 mm
364PLP-12M 12 mm 40.5 mm 14.5 mm
364PLP-14M 14 mm 46.0 mm 35.5 mm
364PLP-16M 16 mm 52.0 mm 39.0 mm
