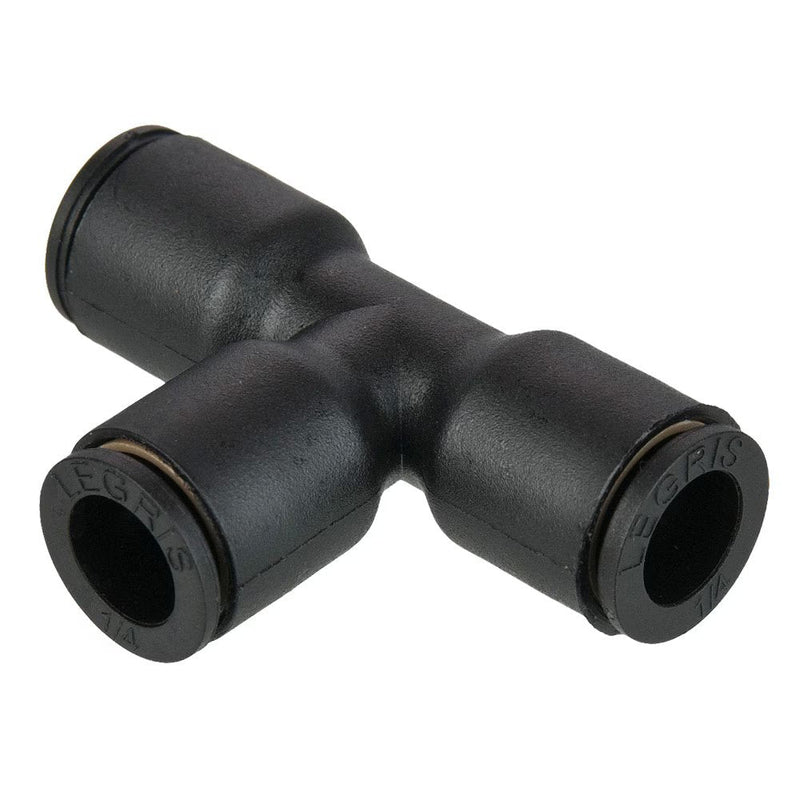

364PLP-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Tube to Tube Fittings | 1/4" Union Tube Size | .71" Length (L/2) | Tee | Glass-Reinforced Nylon | Pack of 10

364PLP-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Tube to Tube Fittings | 1/4" Union Tube Size | .71" Length (L/2) | Tee | Glass-Reinforced Nylon | Pack of 10

Minimum Order Quantity: 5 Units

Save $29.59 Save $29.59
$73.97
$73.97 - $73.97
$73.97
$44.38
$44.38 - $44.38
$44.38

by Parker Hannifin
Push-to-Connect Fittings:364PLP Union Tee

Package Quantity: 10 Units

Specifications for Variant SKU: 364PLP-4 Parker | 10 |
Series: 364PLP Series
Shape (Orientation): Tee
Material(s): Glass-Reinforced Nylon
Special Properties: Corrosion Resistance, Chemical Resistance, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size L/2 H
364PLP-2 1/8" .57" .75"
364PLP-3 3/16" .85" 1.07"
364PLP-4 1/4" .71" .92"
364PLP-6 3/8" 1.02" 1.34"
364PLP-8 1/2" 1.38" 1.81"
