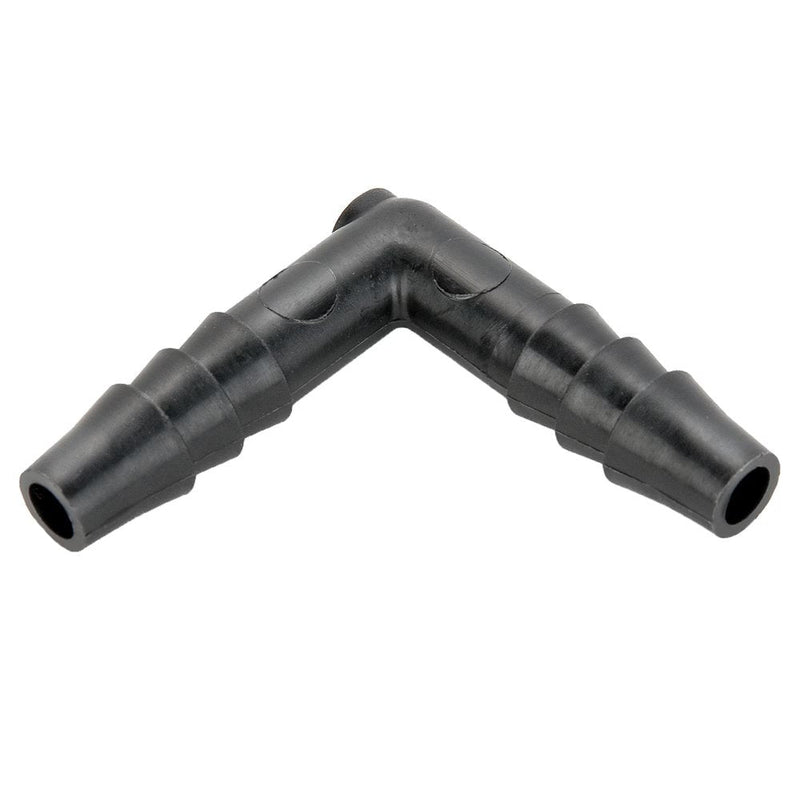

365HB-8-6PP by Parker | Tube to Tube Fitting | 1/2" Union Barb x 3/8" Barb | 1.27" Length | 90° Elbow | Black | Polypropylene

365HB-8-6PP by Parker | Tube to Tube Fitting | 1/2" Union Barb x 3/8" Barb | 1.27" Length | 90° Elbow | Black | Polypropylene

Save $0.08 Save $0.08
$0.89
$0.89 - $0.89
$0.89
$0.81
$0.81 - $0.81
$0.81

by Parker Hannifin
Par-Barb® Fittings:Union Elbow 365HB
Specifications for Variant SKU: 365HB-8-6PP Parker
Brand: Par-Barb®
Series: 365HB Series
Shape (Orientation): 90° Elbow
Material(s): Polypropylene
Special Properties: Water and Beverage
Product Features:
  • Available in black polypropylene and white nylon
  • FDA compliant material
  • NSF/ANSI 51
  • Uniprene washer
  • Up to 1 1/2” sizes
Markets:
  • Water
  • Beverage Dispensing
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • Beverages
  • Cooling Systems
  • Vacuum
Pressure Range: Up to 125 PSI (8.6 bar)
Temperature Range: Nylon: -40° to +200° F (-40° to +93.3° C)
Polypropylene: 0° to +212° F (-12.2° to +100° C)
Compatible Tubing:
  • Vinyl
  • Polyurethane
  • Rubber Hose
White Nylon Part Number Black Polypropylene Part Number Tube Or Hose ID 1 Tube Or Hose ID 2 OD 1 OD 2 M N Flow Diameter (D)
365HB-4N 365HB-4PP 1/4" 1/4" .31" .31" 1.13" 1.13" .15"
- 365HB-5PP 5/16" 5/16" .37" .37" 1.19" 1.19" .22"
365HB-6N 365HB-6PP 3/8" 3/8" .43" .43" 1.26" 1.26" .25"
365HB-8-4N 365HB-8-4PP 1/2" 1/4" .55" .31" 1.26" 1.24" .16"
365HB-8-6N 365HB-8-6PP 1/2" 3/8" .55" .43" 1.26" 1.27" .25"
365HB-8N 365HB-8PP 1/2" 1/2" .55" .55" 1.26" 1.26" .37"
365HB-10N 365HB-10PP 5/8" 5/8" .66" .66" 1.37" 1.37" .46"
365HB-12N 365HB-12PP 3/4" 3/4" .80" .80" 1.48" 1.48" .57"
365HB-20N - 1-1/4" 1-1/4" 1.26" 1.26" 2.63" 2.63" 1.00"
365HB-24N - 1-1/2" 1-1/2" 1.51" 1.51" 2.74" 2.74" 1.25"
