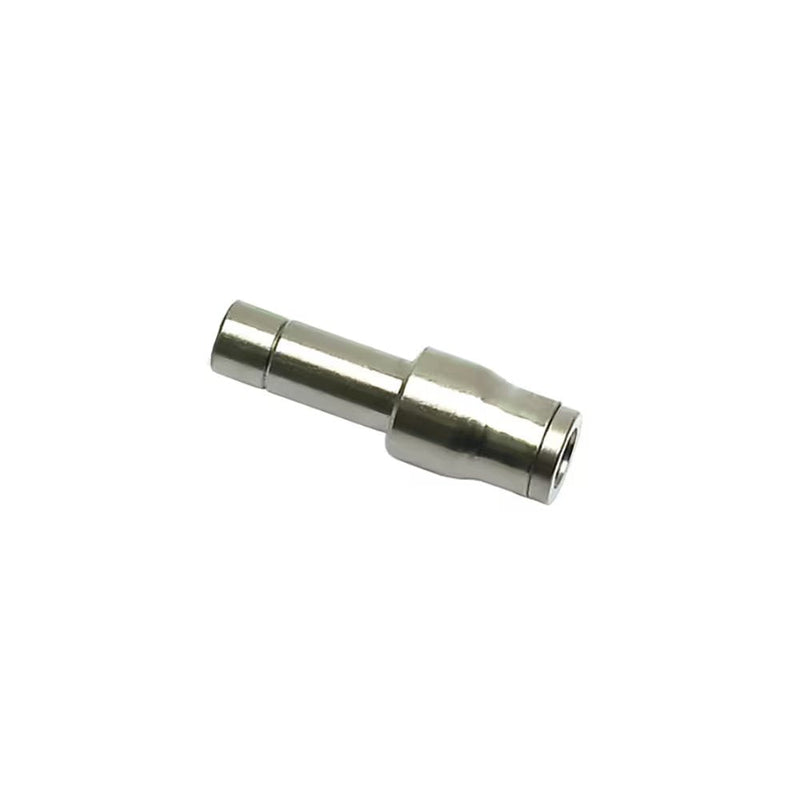

3666 56 60 by Parker | Metal Reducer Push-to-Connect Fitting | 1/4" Tube Stem x 3/8" Push-to-Connect | 1.46" Length | Straight | Nickel-Plated Brass | Pack of 10

3666 56 60 by Parker | Metal Reducer Push-to-Connect Fitting | 1/4" Tube Stem x 3/8" Push-to-Connect | 1.46" Length | Straight | Nickel-Plated Brass | Pack of 10

Save $38.18 Save $38.18
$95.45
$95.45 - $95.45
$95.45
$57.27
$57.27 - $57.27
$57.27

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3666 - plug-in reducer fractional inch

Package Quantity: 10 Units

Specifications for Variant SKU: 3666 56 60 Parker | 10 |
Brand: LF3600®
Series: 3666 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Special Properties: Silicone Free, Food Grade, Chemical Resistance, Abrasion Resistance
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone-Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Automation
  • Food Processing
Applications:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
Pressure Range
  • Up to 435 psi (30 bar)
Temperature Range
  • -4° to 302° F (-20° to 150° C)
Vacuum Capability
  • 28" Hg
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A
  • Semi-Rigid Nylon
  • Fluoropolymer
  • Stainless Steel (when grooved)
  • Copper (when grooved)
Note:
  • Maximum working pressure and temperature are dependent on the type of tubing used
  • Units with thread sealant do not meet FDA Compliance
Part Number ØD1 ØD2 G L L1 L2 Oz
3666 56 60 1/4" 3/8" .49" 1.46" .79" .77" .54 Oz
3666 56 62 1/4" 1/2" .49" 1.71" .98" .83" .55 Oz
3666 60 62 3/8" 1/2" .67" 1.97" 1.02" 1.04" 1.28 Oz
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
