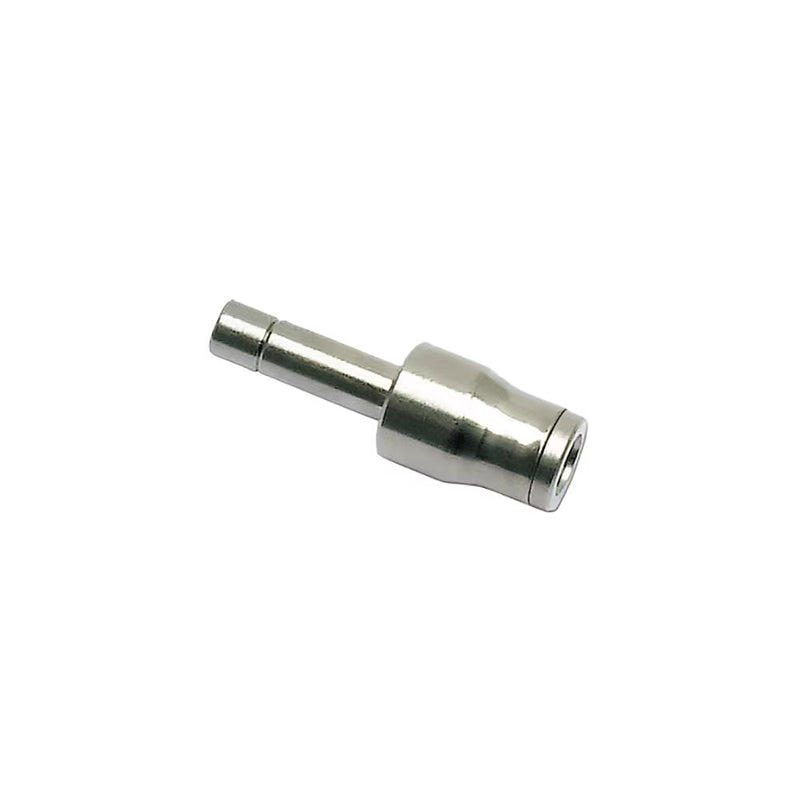

3667 10 60 by Parker | Legris Plug-In Adapter | 10 mm Tube Size x 3/8" Tube Size | 49.5 mm Length | Straight | Nickel-Plated Brass

3667 10 60 by Parker | Legris Plug-In Adapter | 10 mm Tube Size x 3/8" Tube Size | 49.5 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Save $56.32 Save $56.32
$140.80
$140.80 - $140.80
$140.80
$84.48
$84.48 - $84.48
$84.48

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Accessories :3667 Plug-In Metric/Inch Adaptor

Package Quantity: 10 Units

Specifications for Variant SKU: 3667 10 60 Parker | 10 |
Series: 3667 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Seal Material(s): FKM
Special Properties: Food Grade, Silicone Free
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD1 ØD2 G L L1 L2 Kg
3667 06 56 6 mm 1/4" 12.5 mm 38.5 mm 19.5 mm 21 mm .012 Kg
3667 10 60 10 mm 3/8" 17 mm 49.5 mm 25 mm 27 mm .026 Kg
3667 12 62 12 mm 1/2" 20 mm 51 mm 26 mm 27.5 mm .030 Kg
