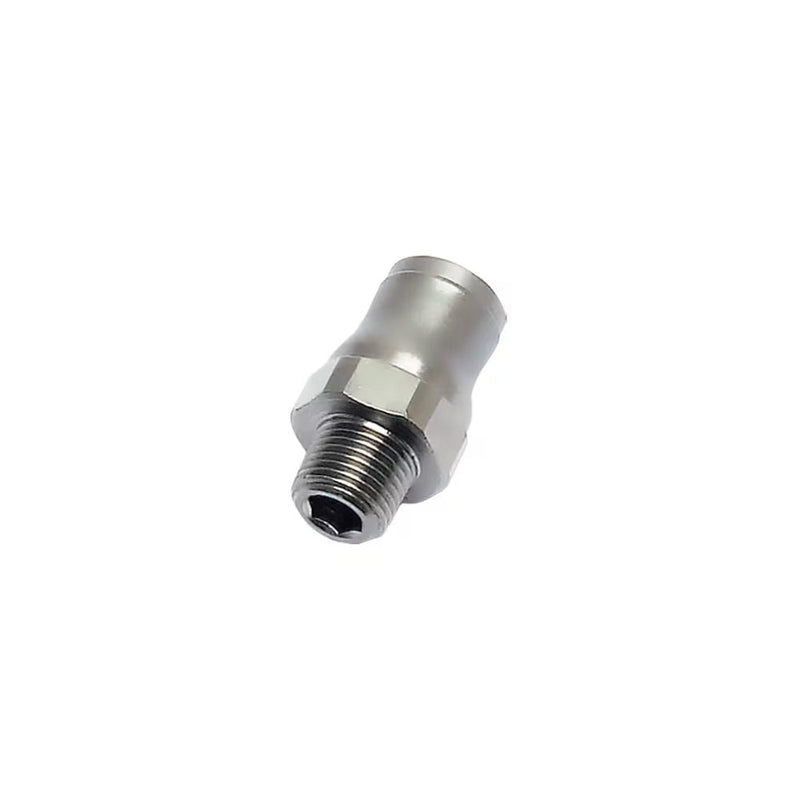

3675 60 14 by Parker | Metal Push-to-Connect Fitting | 3/8" Push-to-Connect x 1/4" Male NPT Thread | 18 mm Hex | 1.38" Length | Straight | Nickel-Plated Brass

3675 60 14 by Parker | Metal Push-to-Connect Fitting | 3/8" Push-to-Connect x 1/4" Male NPT Thread | 18 mm Hex | 1.38" Length | Straight | Nickel-Plated Brass | Pack of 10

Save $48.55 Save $48.55
$121.37
$121.37 - $121.37
$121.37
$72.82
$72.82 - $72.82
$72.82

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3675 - male connector fractional inch tube to NPT

Package Quantity: 10 Units

Specifications for Variant SKU: 3675 60 14 Parker | 10 |
Brand: LF3600®
Series: 3675 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Seal Material(s): FKM
Special Properties: Silicone Free, Food Grade, Chemical Resistance, Abrasion Resistance
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone-Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Automation
  • Food Processing
Applications:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
Pressure Range
  • Up to 435 psi (30 bar)
Temperature Range
  • -4° to 302° F (-20° to 150° C)
Vacuum Capability
  • 28" Hg
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A
  • Semi-Rigid Nylon
  • Fluoropolymer
  • Stainless Steel (when grooved)
  • Copper (when grooved)
Note:
  • Maximum working pressure and temperature are dependent on the type of tubing used
  • Units with thread sealant do not meet FDA Compliance
Part Number ØD NPT (C) E F1 F2 H K Oz
3675 04 11 5/32" 1/8" .30" 11 mm 3 mm .59" .47" .28 Oz
3675 04 14 5/32" 1/4" .43" 14 mm 3 mm .59" .59" .56 Oz
3675 56 11 1/4" 1/8" .30" 13 mm 4 mm .67" .55" .42 Oz
3675 56 18 1/4" 3/8" .45" 18 mm 5 mm .67" .77" .72 Oz
3675 60 11 3/8" 1/8" .30" 18 mm 4 mm .97" .77" .99 Oz
3675 60 14 3/8" 1/4" .43" 18 mm 7 mm .95" .77" 1.13 Oz
3675 60 18 3/8" 3/8" .45" 18 mm 8 mm .91" .77" 1.16 Oz
3675 60 22 3/8" 1/2" .59" 22 mm 8 mm .95" .94" 1.90 Oz
3675 62 18 1/2" 3/8" .45" 22 mm 9 mm .95" .94" 1.52 Oz
