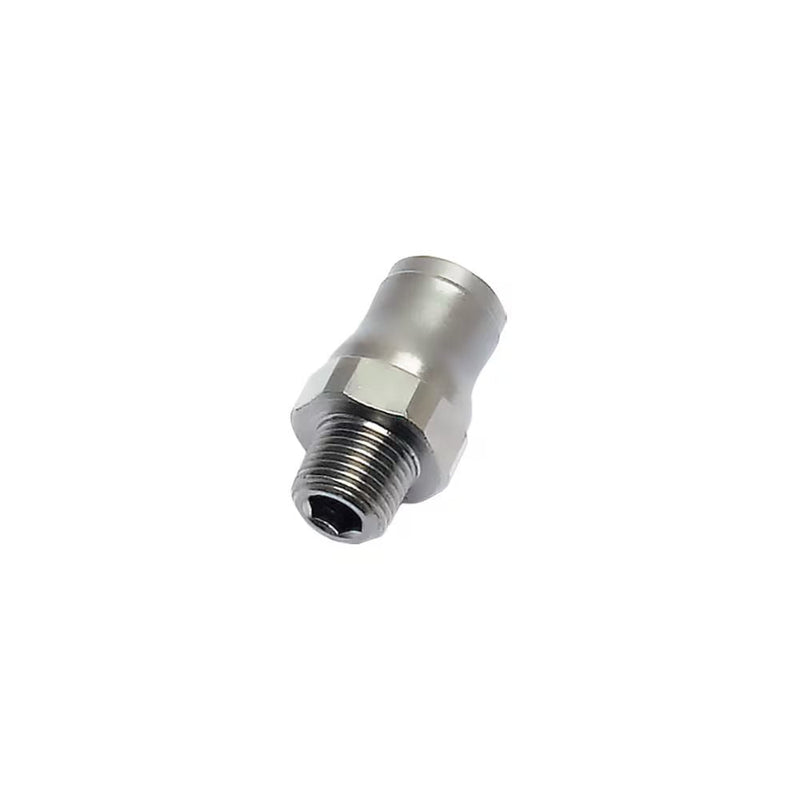

3675 60 18 by Parker | Metal Push-to-Connect Fitting | 3/8" Push-to-Connect x 3/8" Male NPT Thread | 18 mm Hex | 1.36" Length | Straight | Nickel-Plated Brass | Pack of 10

Save $56.32

$140.80

$140.80 - $140.80

$140.80

$84.48

$84.48 - $84.48

$84.48

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3675 - male connector fractional inch tube to NPT

Package Quantity: 10 Units

Specifications for Variant SKU: 3675 60 18 Parker \| 10 \|
Brand:	LF3600®
Series:	3675 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	FKM
Special Properties:	Silicone Free, Food Grade, Chemical Resistance, Abrasion Resistance

Product Features:	High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body FKM seal Chemical, corrosion, and abrasion resistance NPT, BSPT, BSPP, and metric threads Silicone-Free
Markets:	Industrial Chemical Life Science Automation Food Processing
Applications:	Food Fluids Harsh Detergents Cleaning In Cold/Hot Water Steam Oils
Pressure Range	Up to 435 psi (30 bar)
Temperature Range	-4° to 302° F (-20° to 150° C)
Vacuum Capability	28" Hg
Compatible Tubing:	Polyethylene Polyurethane 95 Durometer Shore A Semi-Rigid Nylon Fluoropolymer Stainless Steel (when grooved) Copper (when grooved)
Note:	Maximum working pressure and temperature are dependent on the type of tubing used Units with thread sealant do not meet FDA Compliance


Part Number	ØD	NPT (C)	E	F1	F2	H	K	Oz
3675 04 11	5/32"	1/8"	.30"	11 mm	3 mm	.59"	.47"	.28 Oz
3675 04 14	5/32"	1/4"	.43"	14 mm	3 mm	.59"	.59"	.56 Oz
3675 56 11	1/4"	1/8"	.30"	13 mm	4 mm	.67"	.55"	.42 Oz
3675 56 18	1/4"	3/8"	.45"	18 mm	5 mm	.67"	.77"	.72 Oz
3675 60 11	3/8"	1/8"	.30"	18 mm	4 mm	.97"	.77"	.99 Oz
3675 60 14	3/8"	1/4"	.43"	18 mm	7 mm	.95"	.77"	1.13 Oz
3675 60 18	3/8"	3/8"	.45"	18 mm	8 mm	.91"	.77"	1.16 Oz
3675 60 22	3/8"	1/2"	.59"	22 mm	8 mm	.95"	.94"	1.90 Oz
3675 62 18	1/2"	3/8"	.45"	22 mm	9 mm	.95"	.94"	1.52 Oz

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
