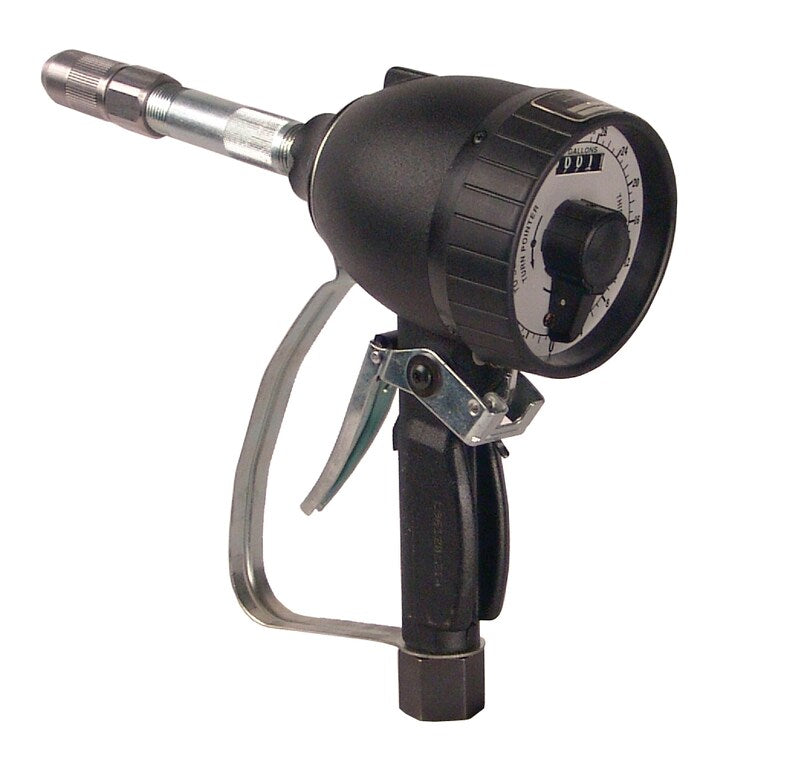

3691-C by Alemite | Mechanical Preset Meter | Dial Registers: Gallon | Fluids: Gear Oil, Motor Oil, ATF | Odometer Registers: Gallon | Dial range: Gallon (0-15) | Extension: Rigid | Valve inlet: 1/2" Female NPTF with swivel | Max Operating PSI: 1000 PSI

Save $15.77

$1,479.48

$1,479.48 - $1,479.48

$1,479.48

$1,463.71

$1,463.71 - $1,463.71

$1,463.71

PRODUCT DESCRIPTION

Alemite Control Valves and Meters - Mechanical Preset Meters

Quantity

Specifications for Variant SKU: 3691-C Alemite

Applications:
Alemite Mechanical Preset Meters feature a classic dial design to accurately measure and totalize fluid dispensed, where automatic fill capability is important.
Features:
Large, easy to read dial face Meter automatically shuts off when preset amount has been dispensed Latch control permits shut off during operation 1,000 psi maximum operating pressure Non-drip nozzle included Fluid compatibility - Oil, gear oil,ATF Valve inlet: 1/2" NPTF(f) with swivel

Part Number	Dial registers	Fluids	Odometer registers	Dial range	Extension	Non-Drip tip	Weight
3690-C	Quart	Gear Oil, Motor Oil, ATF	Gallon	Quart (0- 60)	Rigid	Manual High Volume	5.1 Lb.
3691-C	Gallon	Gear Oil, Motor Oil, ATF	Gallon	Gallon (0-15)	Rigid	Manual High Volume	5.1 Lb.
3692-C	Quart	AntiFreeze	Quart	Quart (0- 60)	Rigid	Manual High Volume	5.1 Lb.
3693-C	Liter	Gear Oil, Motor Oil, ATF	Liter	Liter (0-60)	Rigid	Manual High Volume	5.1 Lb.
3696-C	Quart	Gear Oil, Motor Oil, ATF	Quart	Quart (0-16)	Rigid	Manual High Volume	5.1 Lb.
