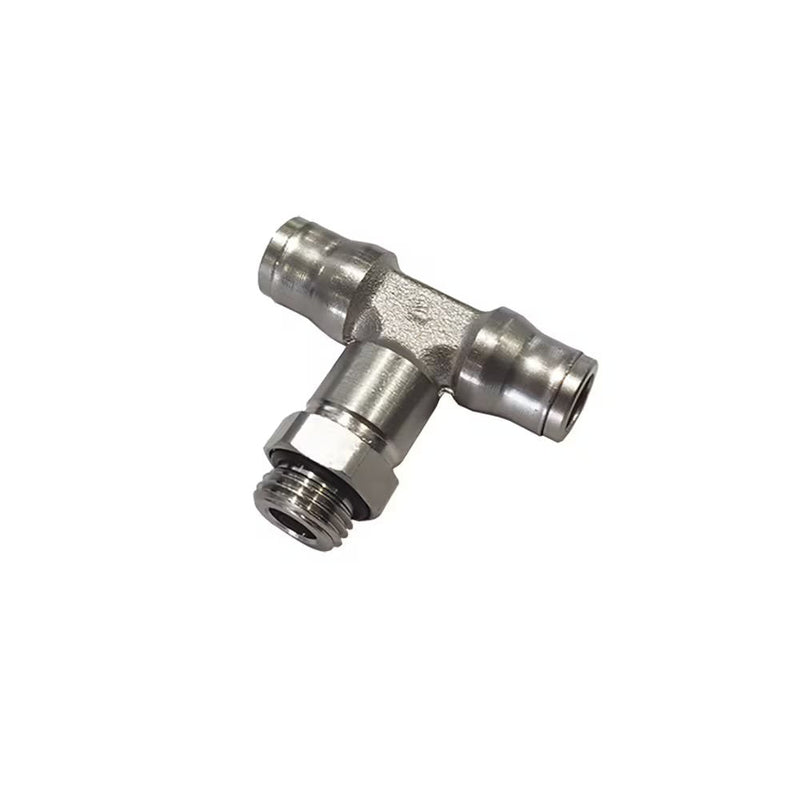

3698 04 19 by Parker | Legris Stud Swivel Fitting | 4mm Tube Size x M5x0.8 Male M5 Metric Thread | 10mm Hex | 36mm Length | Tee | Nickel-Plated Brass | Pack of 10

Save $23.39

$187.66

$187.66 - $187.66

$187.66

$164.27

$164.27 - $164.27

$164.27

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3698 - male branch tee tube to tube to UNF, BSPP or M5

Package Quantity: 10 Units

Specifications for Variant SKU: 3698 04 19 Parker \| 10 \|
Series:	3698 Series
Shape (Orientation):	Tee
Material(s):	Nickel-Plated Brass
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free, Swivel

Technical Characteristics:	Suitable Fluids: Compressed air, grease, lubricant, water Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639) Working Temperature: -25°C to +150°C
Advantages:	Wide range of working temperatures: up to +150°C Wide range of working pressures: from vacuum up to 30 bar Materials conform to FDA standards Extended chemical compatibility
Regulations:	RoHS REACH PED
Component Materials:	Body: FDA chemical nickel-plated brass Adapter: FDA Chemical nickel-plated brass Collet: FDA Chemical nickel-plated brass Washer: Stainless Steel 316L O-Ring: Fluoroelastomer (FKM)


Part Number	ØD	C	E	F	G	H	J	L/2	Kg
3698 04 20	5/32"	10-32	-	10 mm	.39"	1.00"	-	.71"	.0196 Kg
3698 04 19	4 mm	M5x0.8	3.5 mm	10 mm	10 mm	27.5 mm	7 mm	18 mm	.018 Kg
3698 04 10	4 mm	1/8"	4.5 mm	13 mm	10 mm	25.5 mm	7 mm	18 mm	.021 Kg
3698 06 10	6 mm	1/8"	4.5 mm	13 mm	12 mm	31 mm	8 mm	21.5 mm	.031 Kg
3698 06 13	6 mm	1/4"	5.5 mm	16 mm	12 mm	30.5 mm	8 mm	21.5 mm	.035 Kg
3698 08 10	8 mm	1/8"	4.5 mm	14 mm	15 mm	33.5 mm	10 mm	23.5 mm	.041 Kg
3698 08 13	8 mm	1/4"	5.5 mm	16 mm	15 mm	34 mm	10 mm	23.5 mm	.045 Kg
3698 10 13	10 mm	1/4"	5.5 mm	18 mm	17.5 mm	42 mm	12 mm	29 mm	.066 Kg
3698 12 17	12 mm	3/8"	5.5 mm	20 mm	19.5 mm	46 mm	15 mm	31 mm	.088 Kg
3698 14 21	14 mm	1/2"	7 mm	24 mm	21.5 mm	49 mm	16 mm	34 mm	.119 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
