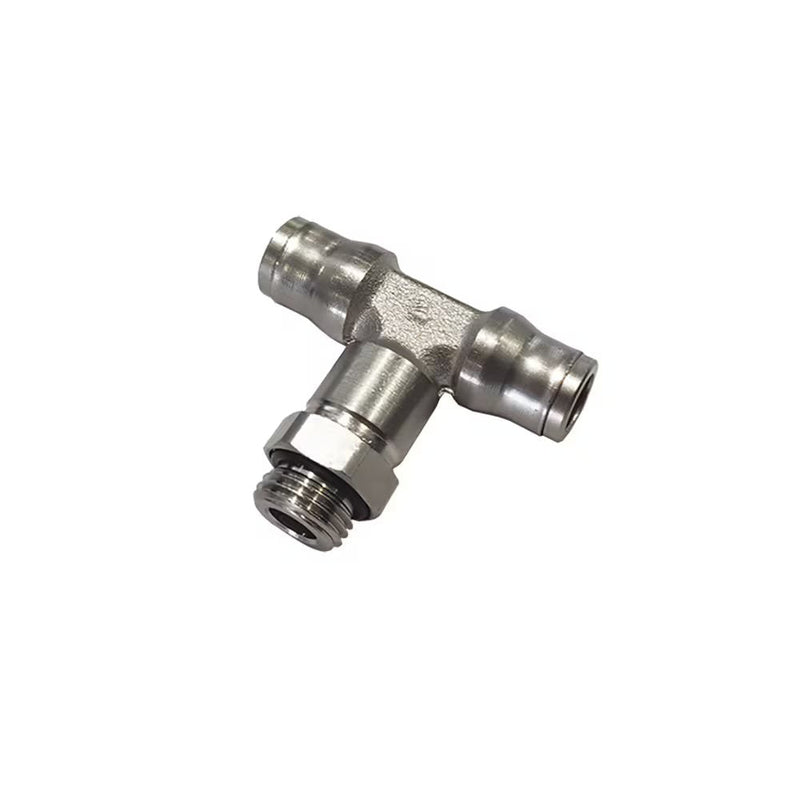

3698 08 10 by Parker | Legris Stud Swivel Fitting | 8mm Tube Size x 1/8" Male BSPP Thread | 14mm Hex | 47mm Length | Tee | Nickel-Plated Brass | Pack of 10

Save $24.26

$195.33

$195.33 - $195.33

$195.33

$171.07

$171.07 - $171.07

$171.07

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3698 - male branch tee tube to tube to UNF, BSPP or M5

Package Quantity: 10 Units

Specifications for Variant SKU: 3698 08 10 Parker \| 10 \|
Series:	3698 Series
Shape (Orientation):	Tee
Material(s):	Nickel-Plated Brass
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free, Swivel

Technical Characteristics:	Suitable Fluids: Compressed air, grease, lubricant, water Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639) Working Temperature: -25°C to +150°C
Advantages:	Wide range of working temperatures: up to +150°C Wide range of working pressures: from vacuum up to 30 bar Materials conform to FDA standards Extended chemical compatibility
Regulations:	RoHS REACH PED
Component Materials:	Body: FDA chemical nickel-plated brass Adapter: FDA Chemical nickel-plated brass Collet: FDA Chemical nickel-plated brass Washer: Stainless Steel 316L O-Ring: Fluoroelastomer (FKM)


Part Number	ØD	C	E	F	G	H	J	L/2	Kg
3698 04 20	5/32"	10-32	-	10 mm	.39"	1.00"	-	.71"	.0196 Kg
3698 04 19	4 mm	M5x0.8	3.5 mm	10 mm	10 mm	27.5 mm	7 mm	18 mm	.018 Kg
3698 04 10	4 mm	1/8"	4.5 mm	13 mm	10 mm	25.5 mm	7 mm	18 mm	.021 Kg
3698 06 10	6 mm	1/8"	4.5 mm	13 mm	12 mm	31 mm	8 mm	21.5 mm	.031 Kg
3698 06 13	6 mm	1/4"	5.5 mm	16 mm	12 mm	30.5 mm	8 mm	21.5 mm	.035 Kg
3698 08 10	8 mm	1/8"	4.5 mm	14 mm	15 mm	33.5 mm	10 mm	23.5 mm	.041 Kg
3698 08 13	8 mm	1/4"	5.5 mm	16 mm	15 mm	34 mm	10 mm	23.5 mm	.045 Kg
3698 10 13	10 mm	1/4"	5.5 mm	18 mm	17.5 mm	42 mm	12 mm	29 mm	.066 Kg
3698 12 17	12 mm	3/8"	5.5 mm	20 mm	19.5 mm	46 mm	15 mm	31 mm	.088 Kg
3698 14 21	14 mm	1/2"	7 mm	24 mm	21.5 mm	49 mm	16 mm	34 mm	.119 Kg
