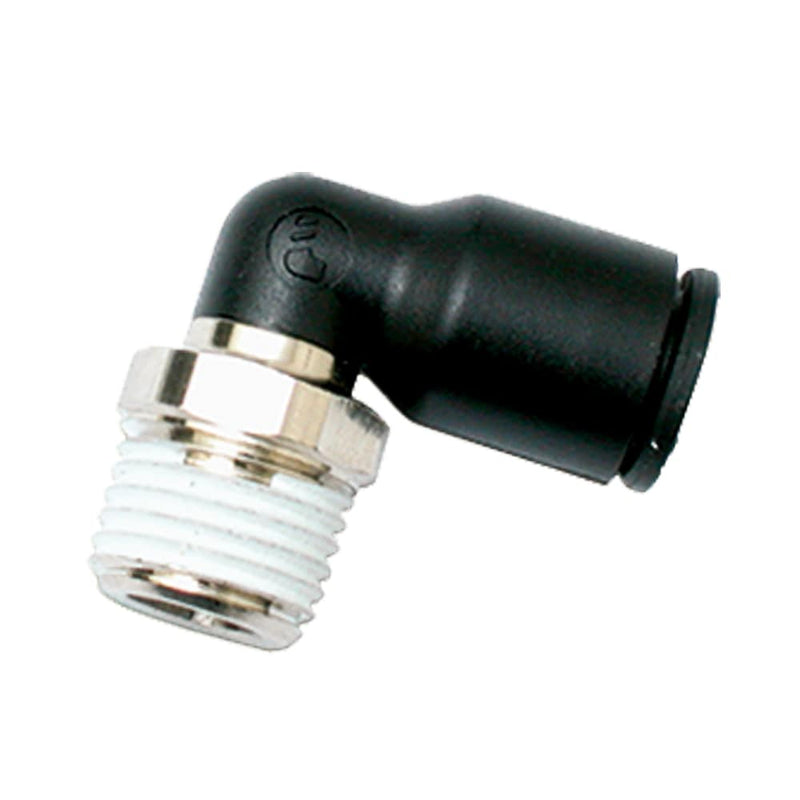

369PLP-2-0 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 1/8" Tube Size x 10-32" Male NPT Thread | 8mm Hex | .57" Length | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

369PLP-2-0 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 1/8" Tube Size x 10-32" Male NPT Thread | 8mm Hex | .57" Length | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

Minimum Order Quantity: 5 Units

Save $5.49 Save $5.49
$60.34
$60.34 - $60.34
$60.34
$54.85
$54.85 - $54.85
$54.85

by Parker Hannifin
Push-to-Connect Fittings:W369PLP Male Elbow - NPT

Package Quantity: 10 Units

Specifications for Variant SKU: 369PLP-2-0 Parker | 10 |
Series: 369PLP Series
Shape (Orientation): 90° Elbow
Material(s): Glass-Reinforced Nylon, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Corrosion Resistance, Chemical Resistance, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-Reinforced Nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size Thread NPT / UNF Hex (C) L N
369PLP-2-0 1/8" 10-32" 8 mm .57" .52"
W369PLP-2-1 1/8" 1/16" 10 mm .57" .53"
W369PLP-2-2 1/8" 1/8" 11 mm .57" .53"
W369PLP-2-4 1/8" 1/4" 14 mm .57" .55"
369PLP-4M-0 5/32" 10-32" 8 mm .55" .53"
W369PLP-3-2 3/16" 1/8" 11 mm .85" .67"
369PLP-4-0 1/4" 10-32" 11 mm .71" .63"
W369PLP-4-2 1/4" 1/8" 11 mm .71" .67"
W369PLP-4-4 1/4" 1/4" 14 mm .71" .63"
W369PLP-4-6 1/4" 3/8" 18 mm .71" .65"
W369PLP-6-2 3/8" 1/8" 15 mm 1.08" .91"
W369PLP-6-4 3/8" 1/4" 15 mm 1.08" .91"
W369PLP-6-6 3/8" 3/8" 18 mm 1.08" .87"
W369PLP-6-8 3/8" 1/2" 22 mm 1.08" .91"
W369PLP-8-4 1/2" 1/432" 20 mm 1.38" 1.22"
W369PLP-8-6 1/2" 3/8" 20 mm 1.38" 1.22"
W369PLP-8-8 1/2" 1/2" 24 mm 1.38" 1.12"
