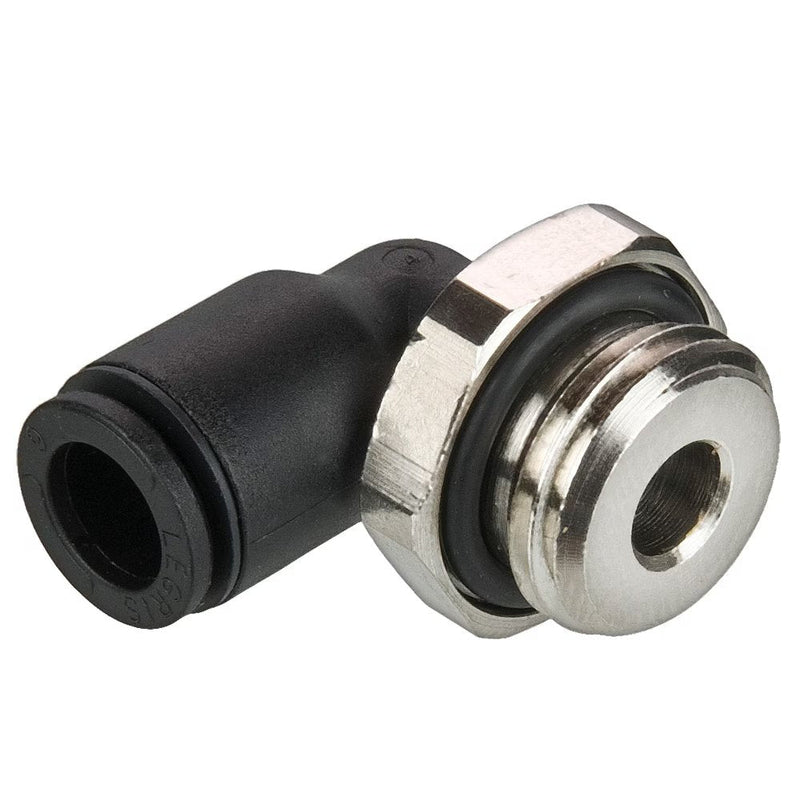

369PLP-3M-M5 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 3mm Push-to-Connect x M5X0.8 Male M5 Thread | 8mm Hex | 14.5mm Length | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

$65.14 - $65.14

$65.14

$71.07

$71.07 - $71.07

$71.07

by Parker Hannifin
Push-to-Connect Fittings:369PLP Male Elbow - BSPP

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 369PLP-3M-M5 Parker \| 10 \|
Series:	369PLP Series
Shape (Orientation):	90° Elbow
Material(s):	Glass-Reinforced Nylon, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size	BSPP/Metric	Hex (C)	H	L
369PLP-3M-M3	3 mm	M3X0.5	8 mm	15.0 mm	14.5 mm
369PLP-3M-M5	3 mm	M5X0.8	8 mm	13.5 mm	14.5 mm
369PLP-4M-M3	4 mm	M3X0.5	8 mm	15.0 mm	14.5 mm
369PLP-4M-M5	4 mm	M5X0.8	8 mm	15.0 mm	14.5 mm
369PLP-4M-2G	4 mm	1/8"	13 mm	13.0 mm	14.0 mm
369PLP-4M-4G	4 mm	1/8"	168 mm	13.0 mm	14.0 mm
369PLP-6M-M5	6 mm	M5X0.8	8 mm	15.5 mm	16.0 mm
369PLP-6M-M7	3 mm	M7X1	10 mm	17.0 mm	16.0 mm
369PLP-6M-M10	6 mm	M10X1	13 mm	15.0 mm	14.0 mm
369PLP-6M-M12	6 mm	M12X1.5	15 mm	15.0 mm	16.0 mm
369PLP-6M-2G	6 mm	1/8"	13 mm	15.0 mm	16.0 mm
369PLP-6M-4G	6 mm	1/4"	16 mm	15.0 mm	16.0 mm
369PLP-6M-6G	6 mm	3/8"	20 mm	15.5 mm	16.0 mm
369PLP-6M-8G	6 mm	1/2"	24 mm	16.0 mm	16.0 mm
369PLP-8M-M10	3 mm	M10X1	13 mm	20.5 mm	23.0 mm
369PLP-8M-M12	8 mm	M12X1.5	15 mm	19.5 mm	23.0 mm
369PLP-8M-2G	8 mm	1/8"	13 mm	20.5 mm	20.0 mm
369PLP-8M-4G	8 mm	1/4"	16 mm	18.5 mm	23.0 mm
369PLP-8M-6G	8 mm	3/8"	20 mm	18.5 mm	23.0 mm
369PLP-8M-8G	8 mm	1/2"	24 mm	19.0 mm	23.0 mm
369PLP-10M-4G	10 mm	1/4"	16 mm	23.5 mm	26.5 mm
369PLP-10M-6G	10 mm	3/8"	20 mm	22.0 mm	26.5 mm
369PLP-10M-8G	10 mm	1/2"	24 mm	22.0 mm	26.5 mm
369PLP-12M-4G	12 mm	1/4"	16 mm	26.5 mm	31.0 mm
369PLP-12M-6G	3 mm	3/8"	20 mm	25.0 mm	31.0 mm
369PLP-12M-8G	12 mm	1/2"	24 mm	25.0 mm	31.0 mm
369PLP-14M-6G	14 mm	3/8"	8 mm	15.0 mm	14.5 mm
369PLP-14M-8G	14 mm	1/2"	24 mm	27.0 mm	35.5 mm
369PLP-16M-6G	16 mm	3/8"	27 mm	54.5 mm	39.0 mm
369PLP-16M-8G	16 mm	1/2"	27 mm	54.5 mm	39.0 mm
