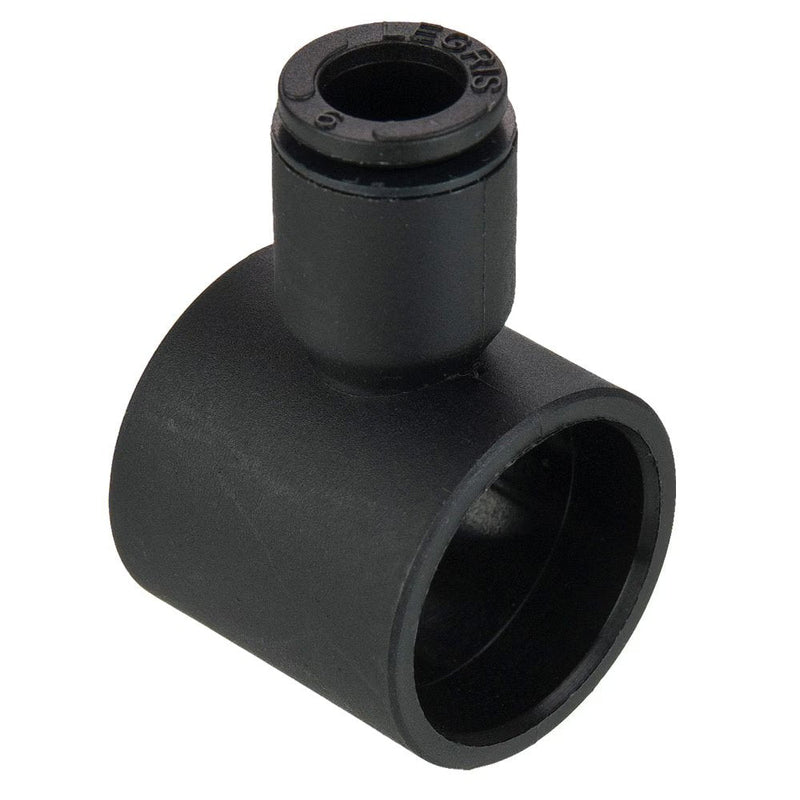

369PLPBJB-10M-4G by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Modular Fitting | 29.0mm Length (L) | Glass-Reinforced Nylon | Pack of 10

369PLPBJB-10M-4G by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Modular Fitting | 10mm Banjo Body x 1/4 Male BSPP Thread | 29.0mm Length (L) | Glass-Reinforced Nylon | Pack of 10

Save $36.47

$91.18

$91.18 - $91.18

$91.18

$54.71

$54.71 - $54.71

$54.71

by Parker Hannifin
Push-to-Connect Fittings:369PLPBJB Banjo Bodies

Package Quantity: 10 Units

Specifications for Variant SKU: 369PLPBJB-10M-4G Parker \| 10 \|
Series:	369PLPBJB Series
Material(s):	Glass-Reinforced Nylon
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size	BSPP / M5	H	L2
369PLPBJB-4M-M5	4 mm	M5X0.8	13.0 mm	16.0 mm
369PLPBJB-4M-2G	4 mm	1/8"	14.5 mm	18.5 mm
369PLPBJB-6M-M5	6 mm	M5X0.8	13.0 mm	18.5 mm
369PLPBJB-6M-2G	6 mm	1/8"	14.5 mm	20.0 mm
369PLPBJB-6M-4G	6 mm	1/4"	18.0 mm	22.0 mm
369PLPBJB-8M-2G	8 mm	1/8"	14.5 mm	25.0 mm
369PLPBJB-8M-4G	8 mm	1/4"	18.0 mm	27.0 mm
369PLPBJB-8M-6G	8 mm	3/8"	21.5 mm	29.0 mm
369PLPBJB-10M-4G	10 mm	1/4"	18.0 mm	29.0 mm
369PLPBJB-10M-6G	10 mm	3/8"	21.5 mm	31.0 mm
369PLPBJB-12M-6G	12 mm	3/8"	21.5 mm	34.5 mm
