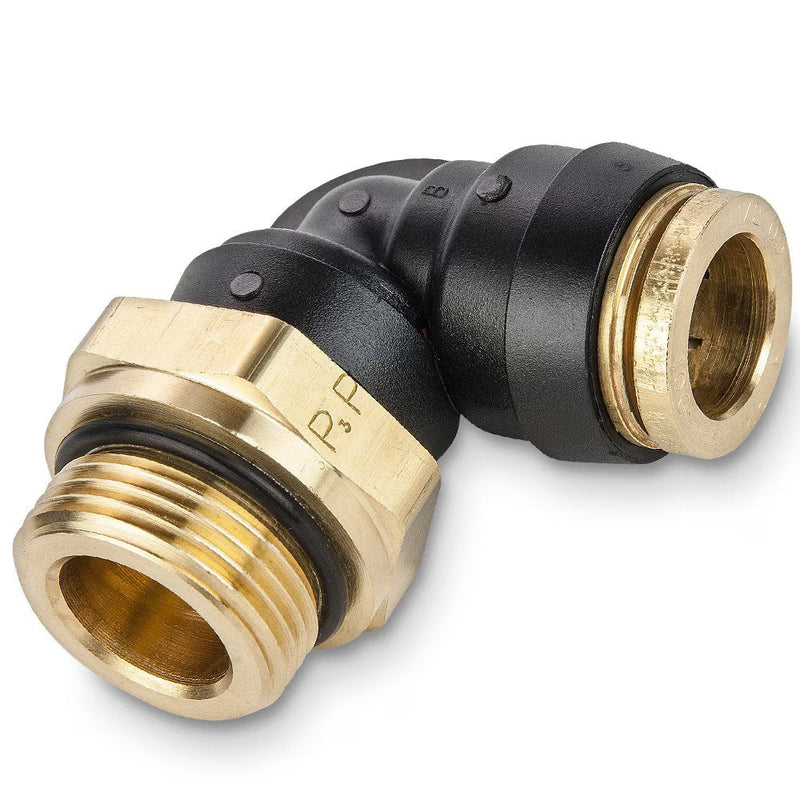

369PTCR-8-MA16 by Parker | Threaded Fitting | 1/2" Rigid Swivel Push-to-Connect x M16X1.5 Male M16 Threads | 15/16" Hex | 90° Elbow | Composite

369PTCR-8-MA16 by Parker | Threaded Fitting | 1/2" Rigid Swivel Push-to-Connect x M16X1.5 Male M16 Threads | 15/16" Hex | 90° Elbow | Composite

Save $14.03 Save $14.03
$35.07
$35.07 - $35.07
$35.07
$21.04
$21.04 - $21.04
$21.04

by Parker Hannifin
PTC & PTCR Composite Fittings:Male Elbow Swivel 90° Metric Straight Thread 369PTCR
Specifications for Variant SKU: 369PTCR-8-MA16 Parker
Series: 369PTCR Series
Shape (Orientation): 90° Elbow
Material(s): Composite, Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Swivel
Product Features:
  • Brass Collet
  • HNBR O-ring
  • Stainless Steel Tube Support or Brass
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Composite Body – Strong, Lightweight, Compact and Impact Resistant
  • Plug-in configurations
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
  • Cab Controls
Specification:
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Thread Hex (B) L M
369PTCR-4-MA12 1/4" M12x1.5 11/16" .74" 1.13"
369PTCR-4-MA16 1/4" M16x1.5 7/8" .74" 1.16"
369PTCR-4-MA22 1/4" M22x1.5 1-1/16" .74" 1.28"
369PTCR-6-MA12 3/8" M12x1.5 3/4" 1.01" 1.22"
369PTCR-6-MA16 3/8" M16x1.5 7/8" 1.01" 1.29"
369PTCR-6-MA22 3/8" M22x1.5 1-1/16" 1.01" 1.28"
369PTCR-8-MA12 1/2" M12x1.5 15/16" 1.13" 1.39"
369PTCR-8-MA16 1/2" M16x1.5 15/16" 1.13" 1.41"
369PTCR-8-MA22 1/2" M22x1.5 1-1/16" 1.13" 1.40"
369PTCR-10-MA12 5/8" M12x1.5 1-1/16" 1.36" 1.63"
369PTCR-10-MA16 5/8" M16x1.5 1-1/16" 1.36" 1.58"
369PTCR-10-MA22 5/8" M22x1.5 1-1/16" 1.36" 1.57"
369PTCR-12-MA22 3/4" M12x1.5 1-3/16" 1.47" 1.84"

*Per ISO 4039
