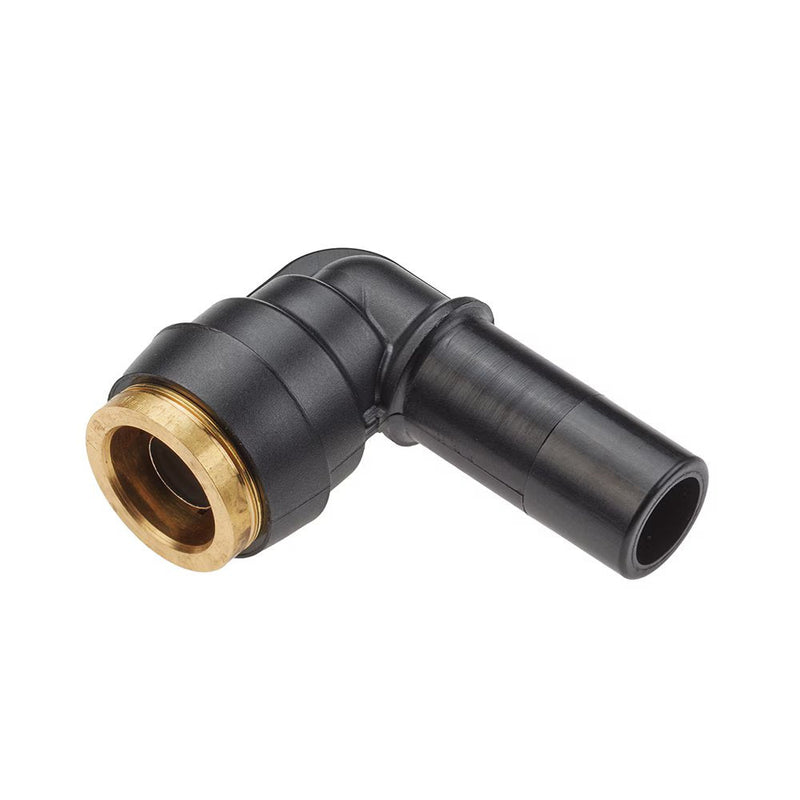

369PTCSP-6-8 by Parker | Plug-In Fitting | 3/8" Push-to-Connect x 1/2" Plug-In Stem | 90° Elbow | Composite | Pack of 2

369PTCSP-6-8 by Parker | Plug-In Fitting | 3/8" Push-to-Connect x 1/2" Plug-In Stem | 90° Elbow | Composite | Pack of 2

Save $9.01 Save $9.01
$22.53
$22.53 - $22.53
$22.53
$13.52
$13.52 - $13.52
$13.52

by Parker Hannifin
PTC & PTCR Composite Fittings:Plug-In Elbow 369PTCSP

Package Quantity: 2 Units

Specifications for Variant SKU: 369PTCSP-6-8 Parker | 2 |
Series: 369PTCSP Series
Shape (Orientation): 90° Elbow
Material(s): Composite, Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Brass Collet
  • HNBR O-ring
  • Stainless Steel Tube Support or Brass
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Composite Body – Strong, Lightweight, Compact and Impact Resistant
  • Plug-in configurations
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
  • Cab Controls
Specification:
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size 1 Tube Size 2 H L
369PTCSP-4-4 1/4" 1/4" 1.06" .74"
369PTCSP-4-6 1/4" 3/8" 1.20" .74"
369PTCSP-6-4 3/8" 1/4" 1.18" .96"
369PTCSP-6-6 3/8" 3/8" 1.32" .96"
369PTCSP-6-8 3/8" 1/2" 1.52" .96"
369PTCSP-8-4 1/2" 1/4" 1.16" 1.12"
369PTCSP-8-6 1/2" 3/8" 1.30" 1.12"
369PTCSP-8-8 1/2" 1/2" 1.50" 1.12"
369PTCSP-10-8 5/8" 1/2" 1.57" 1.36"
