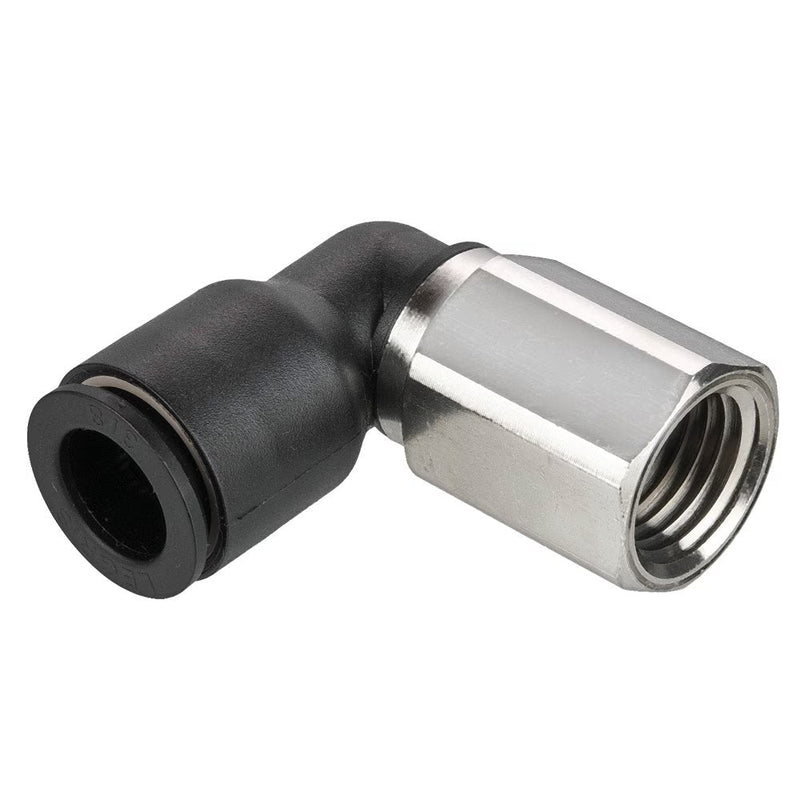

370PLP-8M-2 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 5/16" Swivel x 1/8" Female NPT Thread | 13mm Hex | .91" Length (L) | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

370PLP-8M-2 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 5/16" Swivel x 1/8" Female NPT Thread | 13mm Hex | .91" Length (L) | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

Save $59.82 Save $59.82
$149.55
$149.55 - $149.55
$149.55
$89.73
$89.73 - $89.73
$89.73

by Parker Hannifin
Push-to-Connect Fittings:370PLP Female Elbow Swivel - NPT

Package Quantity: 10 Units

Specifications for Variant SKU: 370PLP-8M-2 Parker | 10 |
Series: 370PLP Series
Shape (Orientation): 90° Elbow
Material(s): Glass-Reinforced Nylon
Special Properties: Corrosion Resistance, Chemical Resistance, Swivel, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size Thread NPT Hex (C) L H
370PLP-2-2 1/8" 1/8" 13 mm .57" .91"
370PLP-4M-2 5/32" 1/8" 13 mm .55" .91"
370PLP-4M-4 5/32" 1/4" 16 mm .55" 1.08"
370PLP-4-2 1/4" 1/8" 13 mm .71" 1.02"
370PLP-4-4 1/4" 1/4" 16 mm .71" 1.18"
370PLP-8M-2 5/16" 1/8" 13 mm .91" 1.12"
370PLP-8M-4 5/16" 1/4" 16 mm .91" 1.28"
370PLP-6-2 3/8" 1/8" 16 mm 1.04" 1.52"
370PLP-6-4 3/8" 1/4" 16 mm 1.04" 1.52"
370PLP-8-6 1/2" 3/8" 22 mm 1.38" 1.88"
