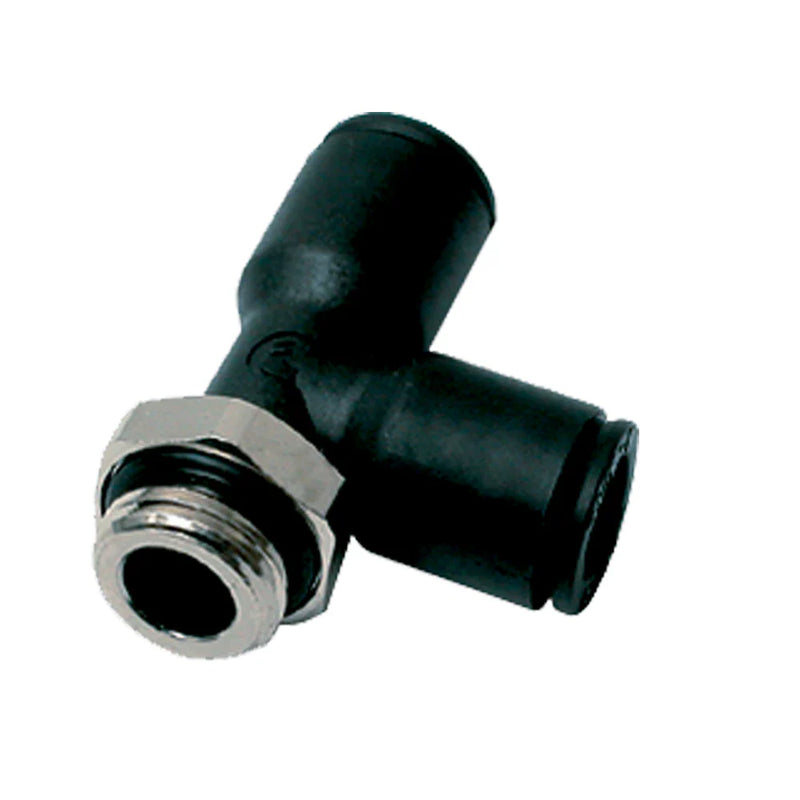

371PLP-8M-4G by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 8mm Tube Size x 1/4" Male BSPP Thread | 16mm Hex | 23.0mm Length | Tee | Glass-Reinforced Nylon | Pack of 10

Save $15.99

$111.46

$111.46 - $111.46

$111.46

$95.47

$95.47 - $95.47

$95.47

by Parker Hannifin
Push-to-Connect Fittings:371PLP Male Run Tee - BSPP

Package Quantity: 10 Units

Specifications for Variant SKU: 371PLP-8M-4G Parker \| 10 \|
Series:	371PLP Series
Shape (Orientation):	Tee
Material(s):	Glass-Reinforced Nylon, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size	BSPP / M5	Hex (C)	H	H1	L
371PLP-4M-M5	4 mm	M5X0.8	8 mm	26.0 mm	11.5 mm	14.5 mm
371PLP-4M-2G	4 mm	1/8"	13 mm	23.0 mm	8.5 mm	14.5 mm
371PLP-4M-4G	4 mm	1/4"	16 mm	23.0 mm	8.5 mm	14.5 mm
371PLP-6M-M5	6 mm	M5X0.8	8 mm	29.5 mm	12.5 mm	17.5 mm
371PLP-6M-2G	6 mm	1/8"	13 mm	27.0 mm	10.0 mm	17.5 mm
371PLP-6M-4G	6 mm	1/4"	16 mm	27.0 mm	10.0 mm	17.5 mm
371PLP-8M-2G	8 mm	1/8"	13 mm	36.5 mm	14.0 mm	23.0 mm
371PLP-8M-4G	8 mm	1/4"	16 mm	34.5 mm	12.0 mm	23.0 mm
371PLP-8M-6G	8 mm	3/8"	20 mm	34.5 mm	12.0 mm	23.0 mm
371PLP-10M-4G	10 mm	1/4"	16 mm	42.0 mm	15.5 mm	26.5 mm
371PLP-10M-6G	10 mm	3/8"	20 mm	40.5 mm	14.0 mm	26.5 mm
371PLP-10M-8G	10 mm	1/2"	24 mm	40.5 mm	14.0 mm	26.5 mm
371PLP-12M-4G	12 mm	1/4"	16 mm	48.0 mm	17.0 mm	31.0 mm
371PLP-12M-6G	12 mm	3/8"	20 mm	46.5 mm	15.5 mm	31.0 mm
371PLP-12M-8G	12 mm	1/2"	24 mm	46.5 mm	15.5 mm	31.0 mm
371PLP-14M-6G	14 mm	3/8"	20 mm	56.5 mm	21.5 mm	35.5 mm
371PLP-14M-8G	14 mm	1/2"	24 mm	51.0 mm	16.0 mm	35.5 mm
371PLP-16M-6G	16 mm	3/8"	27 mm	38.5 mm	79.5 mm	41.0 mm
371PLP-16M-8G	16 mm	1/2"	27 mm	38.5 mm	79.5 mm	41.0 mm
