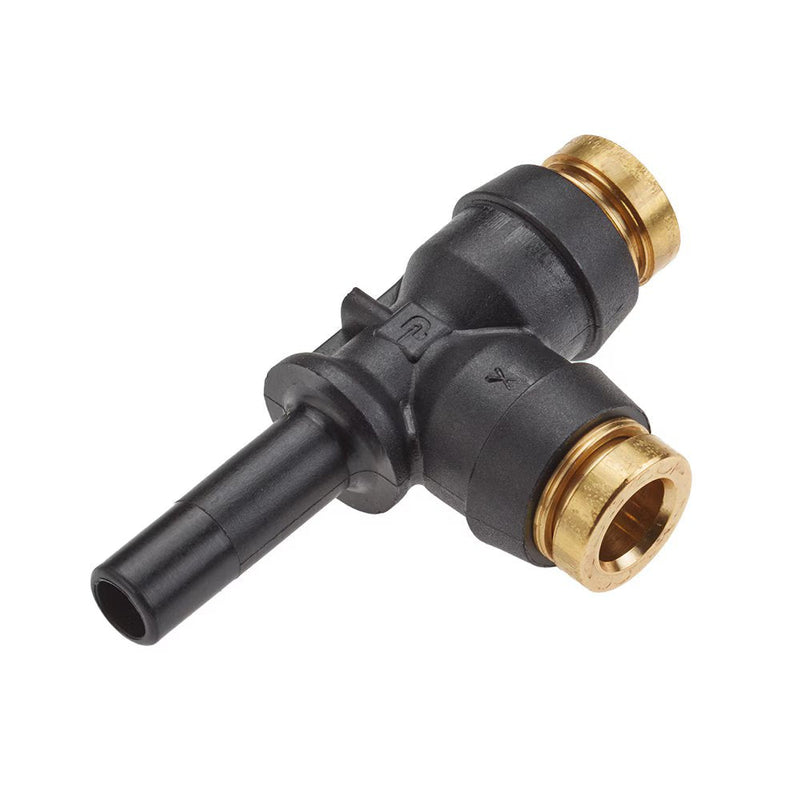

371PTCSP-8-4-8 by Parker | Plug-In Fitting | 1/2" Push-to-Connect x 1/4" Push-to-Connect x 1/2" Stem | 2.58" Length | Tee | Composite | Pack of 2

371PTCSP-8-4-8 by Parker | Plug-In Fitting | 1/2" Push-to-Connect x 1/4" Push-to-Connect x 1/2" Stem | 2.58" Length | Tee | Composite | Pack of 2

Save $24.18 Save $24.18
$60.45
$60.45 - $60.45
$60.45
$36.27
$36.27 - $36.27
$36.27

by Parker Hannifin
PTC & PTCR Composite Fittings:Plug-In Run Tee 371PTCSP

Package Quantity: 2 Units

Specifications for Variant SKU: 371PTCSP-8-4-8 Parker | 2 |
Series: 371PTCSP Series
Shape (Orientation): Tee
Material(s): Composite, Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Brass Collet
  • HNBR O-ring
  • Stainless Steel Tube Support or Brass
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Composite Body – Strong, Lightweight, Compact and Impact Resistant
  • Plug-in configurations
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
  • Cab Controls
Specification:
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size 1 Tube Size 2 Tube Size 3 H L M
371PTCSP-4-4 1/4" 1/4" 1/4" .78" 1.84" .76"
371PTCSP-4-6 1/4" 1/4" 3/8" .78" 1.98" .76"
371PTCSP-6-4 3/8" 3/8" 1/4" 1.01" 2.11" 1.01"
371PTCSP-6-6 3/8" 3/8" 3/8" 1.01" 2.25" 1.01"
371PTCSP-6-4-6 3/8" 1/4" 3/8" .76" 2.24" 1.01"
371PTCSP-8-4-8 1/2" 1/4" 1/2" .96" 2.58" 1.15"
