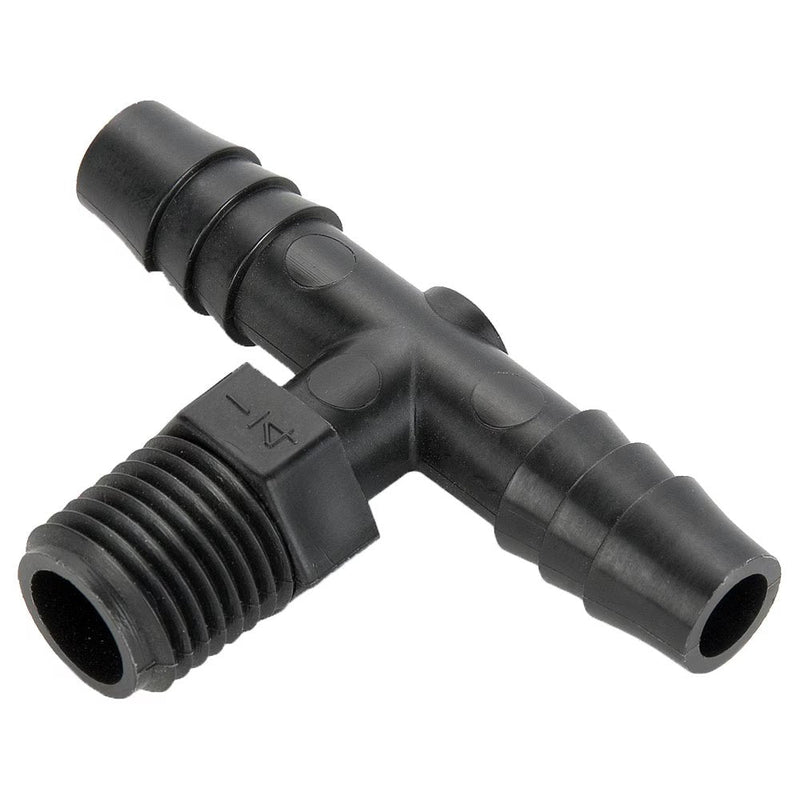

372HB-6-4PP by Parker | Threaded Fitting | 3/8" Barb x 1/4" Male NPT Pipe Thread | 9/16" Hex | 2.22" Length | Tee | Black | Polypropylene

372HB-6-4PP by Parker | Threaded Fitting | 3/8" Barb x 1/4" Male NPT Pipe Thread | 9/16" Hex | 2.22" Length | Tee | Black | Polypropylene

Save $0.09 Save $0.09
$0.96
$0.96 - $0.96
$0.96
$0.87
$0.87 - $0.87
$0.87

by Parker Hannifin
Par-Barb® Fittings:Male Branch Tee 372HB
Specifications for Variant SKU: 372HB-6-4PP Parker
Brand: Par-Barb®
Series: 372HB Series
Shape (Orientation): Tee
Material(s): Polypropylene
Special Properties: Water and Beverage
Product Features:
  • Available in black polypropylene and white nylon
  • FDA compliant material
  • NSF/ANSI 51
  • Uniprene washer
  • Up to 1 1/2” sizes
Markets:
  • Water
  • Beverage Dispensing
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • Beverages
  • Cooling Systems
  • Vacuum
Pressure Range: Up to 125 PSI (8.6 bar)
Temperature Range: Nylon: -40° to +200° F (-40° to +93.3° C)
Polypropylene: 0° to +212° F (-12.2° to +100° C)
Compatible Tubing:
  • Vinyl
  • Polyurethane
  • Rubber Hose
White Nylon Part Number Black Polypropylene Part Number Tube Or Hose ID NPT Pipe Thread OD Hex (C) L N Flow Diameter (D)
372HB-3-2N - 3/16" 1/8" .25" 7/16" 1.94" 1.06" .13"
372HB-3-4N - 3/16" 1/4" .24" 9/16" 1.93" 1.17" .13"
372HB-4-2N 372HB-4-2PP 1/4" 1/8" .32" 7/16" 1.92" 1.06" .16"
372HB-4-4N 372HB-4-4PP 1/4" 1/4" .32" 9/16" 1.94" 1.16" .16"
- 372HB-4-6PP 1/4" 3/8" .32" 11/16" 1.92" 1.18" .16"
372HB-6-4N 372HB-6-4PP 3/8" 1/4" .43" 9/16" 2.22" 1.06" .13"
- 372HB-6-6PP 3/8" 3/8" .43" 11/16" 2.22" 1.17" .25"
372HB-6-8N 372HB-6-8PP 3/8" 1/2" .43" 7/8" 2.22" 1.29" .25"
372HB-8-4N 372HB-8-4PP 1/2" 1/4" .55" 9/16" 2.52" 1.17" .37"
372HB-8-6N 372HB-8-6PP 1/2" 3/8" .56" 11/16" 2.52" 1.17" .37"
372HB-8-8N 372HB-8-8PP 1/2" 1/2" .55" 7/8" 2.52" 1.30" .37"
372HB-12-12N 372HB-12-12PP 3/4" 3/4" .81" 1-1/8" 2.97" 1.92" .58"
