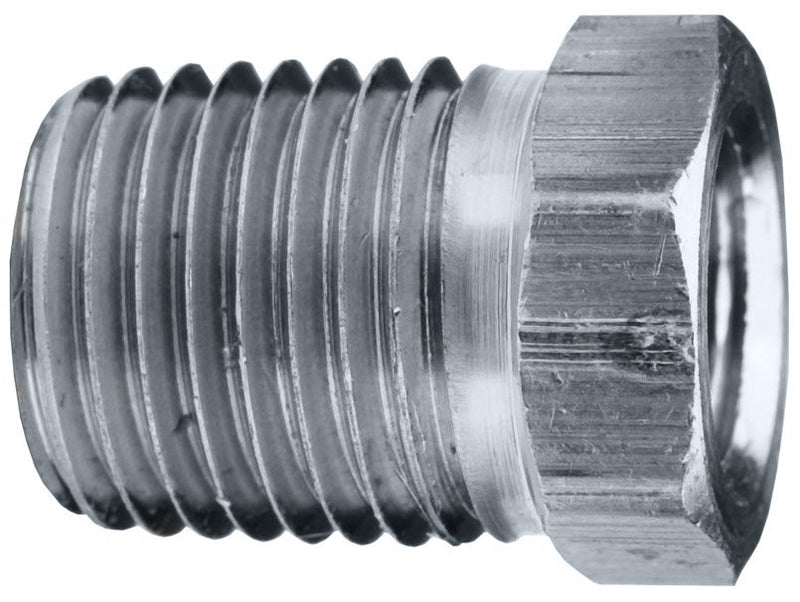

3730402SS by Dixon Valve | Reducer Hex Bushing | 1/4" Male NPT x 1/8" Female NPT | 316 Stainless Steel

3730402SS by Dixon Valve | Reducer Hex Bushing | 1/4" Male NPT x 1/8" Female NPT | 316 Stainless Steel

Save $1.53 Save $1.53
$3.82
$3.82 - $3.82
$3.82
$2.29
$2.29 - $2.29
$2.29

Dixon Valve
Pipe Fitting | Reducer Hex Bushing | Male NPT x Female NPT
Specifications for Variant SKU: 3730402SS Dixon
Series: 373 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 1/8in Female NPT
Material(s): 316 Stainless Steel
Specifications:
  • Ref SAE 130140.
  • Dryseal
Safety Notes:
  • Lead-Free Brass: Conforms To: Safe Water Drinking Act (SWDA) of Jan. 4, 2014; California AB1953; RoHS Compliant. NSF®/ANSI 61 certified Lead-Free Brass <=0.25% lead, Alloy C2745
Brass Lead-Free Brass
Part Number		 316 Stainless Steel
Part Number
(NPT THREADS) 		Male NPTF Female NPTF
Brass
Part Number		 Previous
Part Number
3730402C HB1F2M 3730402CLF 3730402SS** 1/4" 1/8"
3730602C HB1F3M - - 3/8" 1/8"
3730604C HB2F3M 3730604CLF 3730604SS** 3/8" 1/4"
3730802C HB1F4M - 3730802SS** 1/2" 1/8"
3730804C HB2F4M 3730804CLF 3750804SS** 1/2" 1/4"
3730806C HB2F4M 3730806CLF 3750806SS** 1/2" 3/8"
3731202C* HB1F6M - - 3/4" 1/8"
3731204C HB2F6M 3731204CLF 3731204SS** 3/4" 1/4"
3731206C HB3F6M 3731206CLF 3751206SS** 3/4" 3/8"
3731208C HB4F6M 3731208CLF 3751208SS** 3/4" 1/2"
3731604C* HB2F8M - 3731604SS** 1" 1/4"
3731606C* HB3F8M 3731606CLF** 3731606SS** 1" 3/8"
3731608C HB4F8M 3731608CLF** 3751608SS** 1" 1/2"
3731612C HB6F8M 3731612CLF** 3751612SS** 1" 3/4"

** NPT Threads
* SAE does not provide a standard for these sizes

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
