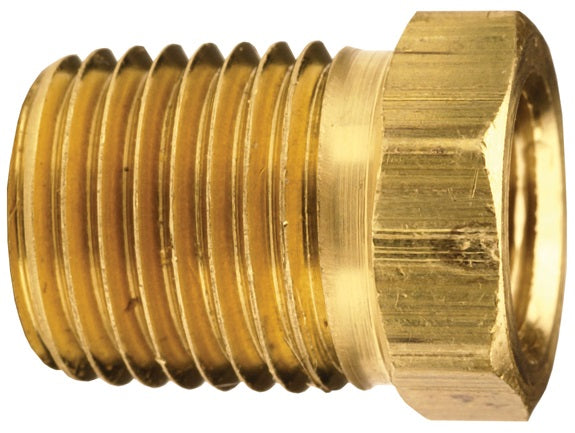

3730602C by Dixon Valve | Reducer Hex Bushing | 3/8" Male NPTF x 1/8" Female NPTF | Brass

Name: 3730602C by Dixon Valve | Reducer Hex Bushing | 3/8" Male NPTF x 1/8" Female NPTF | Brass
Brand: Dixon
SKU: 3730602C Dixon
Price: 1.89 USD
Availability: InStock

Save $1.26

$3.15

$3.15 - $3.15

$3.15

$1.89

$1.89 - $1.89

$1.89

Dixon Valve
Pipe Fitting | Reducer Hex Bushing | Male NPTF x Female NPTF

Specifications for Variant SKU: 3730602C Dixon
Series:	373 Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male NPTF, 1/8in Female NPTF
Material(s):	Brass

Specifications:
Ref SAE 130140. Dryseal
Safety Notes:
Lead-Free Brass: Conforms To: Safe Water Drinking Act (SWDA) of Jan. 4, 2014; California AB1953; RoHS Compliant. NSF®/ANSI 61 certified Lead-Free Brass <=0.25% lead, Alloy C2745

Brass		Lead-Free Brass Part Number	316 Stainless Steel Part Number (NPT THREADS)	Male NPTF	Female NPTF
Brass Part Number	Previous Part Number	Lead-Free Brass Part Number	316 Stainless Steel Part Number (NPT THREADS)	Male NPTF	Female NPTF
3730402C	HB1F2M	3730402CLF	3730402SS**	1/4"	1/8"
3730602C	HB1F3M	-	-	3/8"	1/8"
3730604C	HB2F3M	3730604CLF	3730604SS**	3/8"	1/4"
3730802C	HB1F4M	-	3730802SS**	1/2"	1/8"
3730804C	HB2F4M	3730804CLF	3750804SS**	1/2"	1/4"
3730806C	HB2F4M	3730806CLF	3750806SS**	1/2"	3/8"
3731202C*	HB1F6M	-	-	3/4"	1/8"
3731204C	HB2F6M	3731204CLF	3731204SS**	3/4"	1/4"
3731206C	HB3F6M	3731206CLF	3751206SS**	3/4"	3/8"
3731208C	HB4F6M	3731208CLF	3751208SS**	3/4"	1/2"
3731604C*	HB2F8M	-	3731604SS**	1"	1/4"
3731606C*	HB3F8M	3731606CLF**	3731606SS**	1"	3/8"
3731608C	HB4F8M	3731608CLF**	3751608SS**	1"	1/2"
3731612C	HB6F8M	3731612CLF**	3751612SS**	1"	3/4"

** NPT Threads
* SAE does not provide a standard for these sizes
