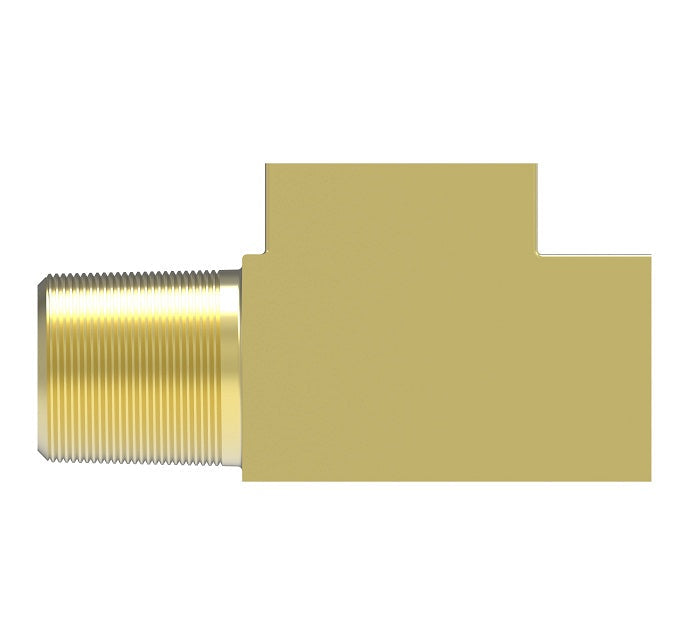

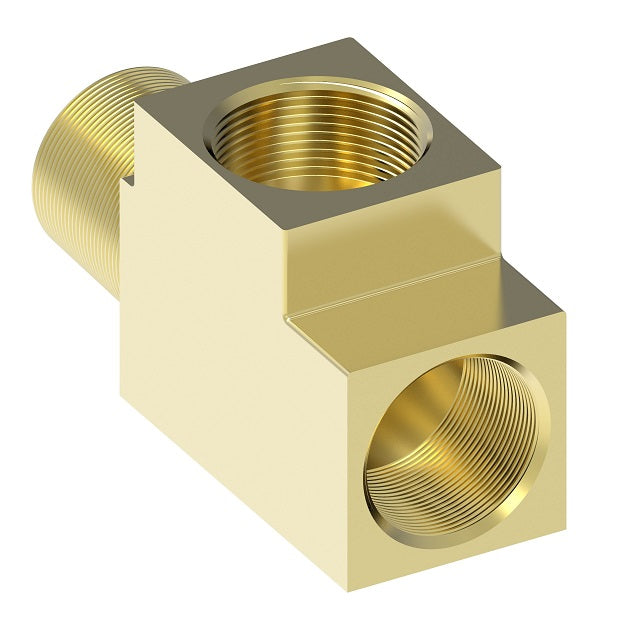

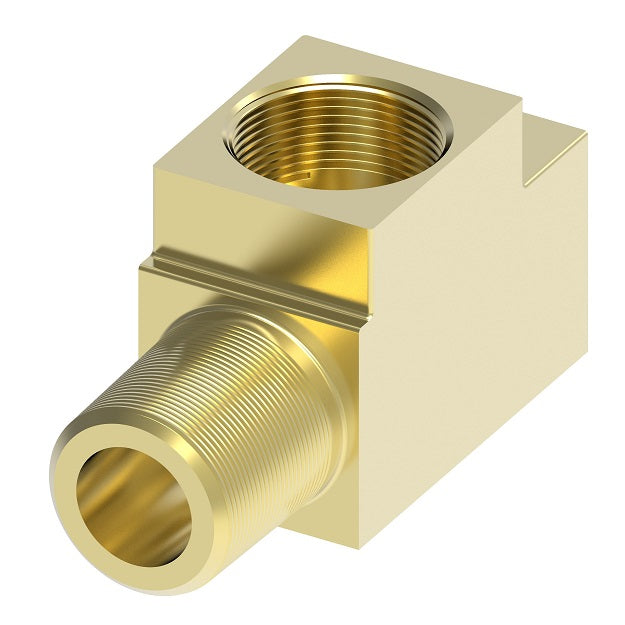

3750X4Z by Danfoss | Pipe Adapter | Male Run Tee (with Sealant) | 1/4" Female NPTF x 1/4" Male NPTF x 1/4" Female NPTF | Brass
3750X4Z by Danfoss | Pipe Adapter | Male Run Tee (with Sealant) | 1/4" Female NPTF x 1/4" Male NPTF x 1/4" Female NPTF | Brass
3750X4Z by Danfoss | Pipe Adapter | Male Run Tee (with Sealant) | 1/4" Female NPTF x 1/4" Male NPTF x 1/4" Female NPTF | Brass
3750X4Z by Danfoss | Pipe Adapter | Male Run Tee (with Sealant) | 1/4" Female NPTF x 1/4" Male NPTF x 1/4" Female NPTF | Brass

3750X4Z by Danfoss | Pipe Adapter | Male Run Tee (with Sealant) | 1/4" Female NPTF x 1/4" Male NPTF x 1/4" Female NPTF | Brass

$15.04 - $15.04
$15.04
$15.04 - $15.04
$15.04

Aeroquip® by Danfoss
Pipe Adapter - Male Run Tee
Specifications for Variant SKU: 3750X4Z Danfoss
Shape (Orientation): Tee
Ends Configuration: 1/4in Female NPTF, 1/4in Male NPTF, 1/4in Female NPTF, Some Ends Match
Material(s): Brass
Applications:
  • Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
  • Dryseal pipe threads (NPTF).
  • Fair Vibration Resistance.
Used With:
  • Brass, bronze and iron pipe.
Material:
  • CA360 Brass.
Operating Pressure:
  • Operating pressure up to 1200 psi.
Temperature Range:
  • -65°F to +250°F
    (-53°C to +121°C).
Conformance:
  • Ref. SAE No. 130424
  • Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14
Brass
Part Number 		Brass
with Sealant
Part Number 		Female Pipe
Thread		 Male Pipe
Thread		 C D M N
3750X2 3750X2Z 1/8" 1/8" 9/16" 0.219" 0.55" 0.67"
3750X4 3750X4Z 1/4" 1/4" 11/16" 0.312" 0.78" 0.92"
3750X6 3750X6Z 3/8" 3/8" 13/16" 0.438" 0.84" 0.97"
3750X8 3750X8Z 1/2" 1/2" 1" 0.562" 1.09" 1.27"
3750X12 - 3/4" 3/4" 1-1/4" 0.750" 1.16" 1.38"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
