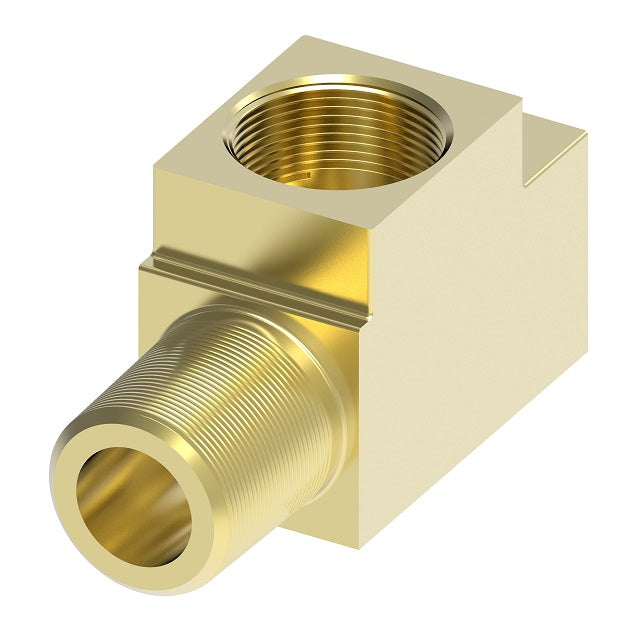

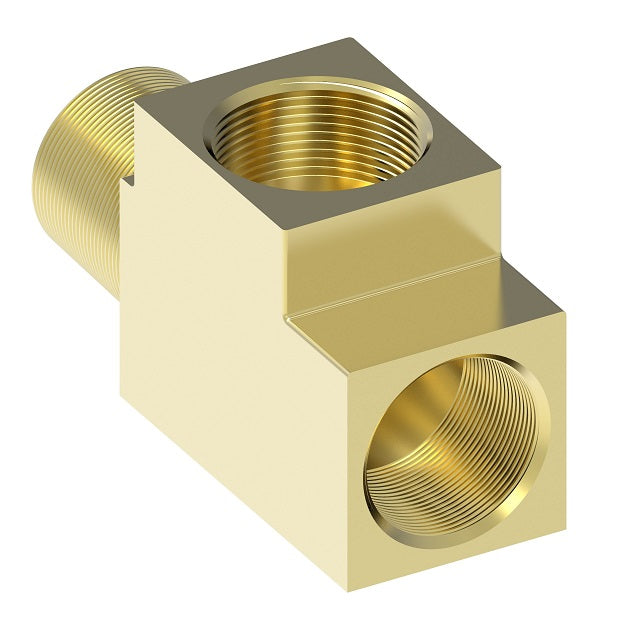

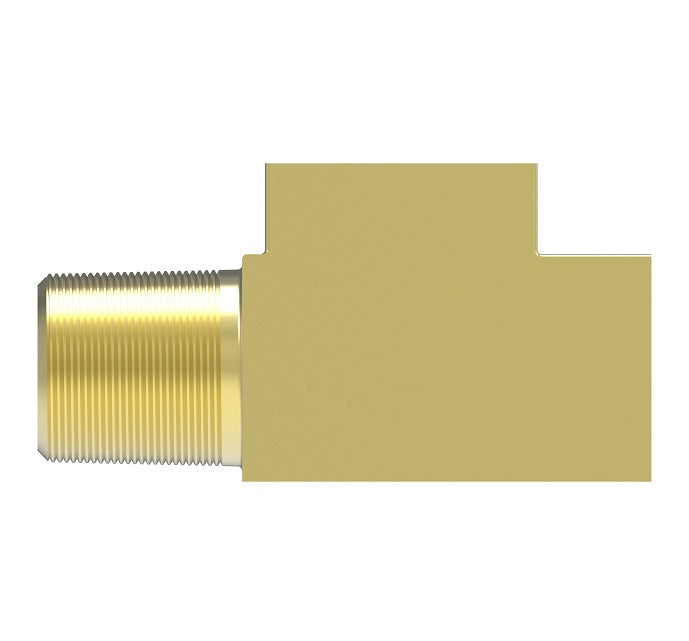

3750X6Z by Danfoss | Pipe Adapter | Male Run Tee (with Sealant) | 3/8" Female NPTF x 3/8" Male NPTF x 3/8" Female NPTF | Brass
3750X6Z by Danfoss | Pipe Adapter | Male Run Tee (with Sealant) | 3/8" Female NPTF x 3/8" Male NPTF x 3/8" Female NPTF | Brass
3750X6Z by Danfoss | Pipe Adapter | Male Run Tee (with Sealant) | 3/8" Female NPTF x 3/8" Male NPTF x 3/8" Female NPTF | Brass
3750X6Z by Danfoss | Pipe Adapter | Male Run Tee (with Sealant) | 3/8" Female NPTF x 3/8" Male NPTF x 3/8" Female NPTF | Brass

3750X6Z by Danfoss | Pipe Adapter | Male Run Tee (with Sealant) | 3/8" Female NPTF x 3/8" Male NPTF x 3/8" Female NPTF | Brass

$9.12 - $9.12
$9.12
$9.12 - $9.12
$9.12

Aeroquip® by Danfoss
Pipe Adapter - Male Run Tee
Specifications for Variant SKU: 3750X6Z Danfoss
Shape (Orientation): Tee
Ends Configuration: 3/8in Female NPTF, 3/8in Male NPTF, 3/8in Female NPTF, Some Ends Match
Material(s): Brass
Applications:
  • Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
  • Dryseal pipe threads (NPTF).
  • Fair Vibration Resistance.
Used With:
  • Brass, bronze and iron pipe.
Material:
  • CA360 Brass.
Operating Pressure:
  • Operating pressure up to 1200 psi.
Temperature Range:
  • -65°F to +250°F
    (-53°C to +121°C).
Conformance:
  • Ref. SAE No. 130424
  • Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14
Brass
Part Number 		Brass
with Sealant
Part Number 		Female Pipe
Thread		 Male Pipe
Thread		 C D M N
3750X2 3750X2Z 1/8" 1/8" 9/16" 0.219" 0.55" 0.67"
3750X4 3750X4Z 1/4" 1/4" 11/16" 0.312" 0.78" 0.92"
3750X6 3750X6Z 3/8" 3/8" 13/16" 0.438" 0.84" 0.97"
3750X8 3750X8Z 1/2" 1/2" 1" 0.562" 1.09" 1.27"
3750X12 - 3/4" 3/4" 1-1/4" 0.750" 1.16" 1.38"
