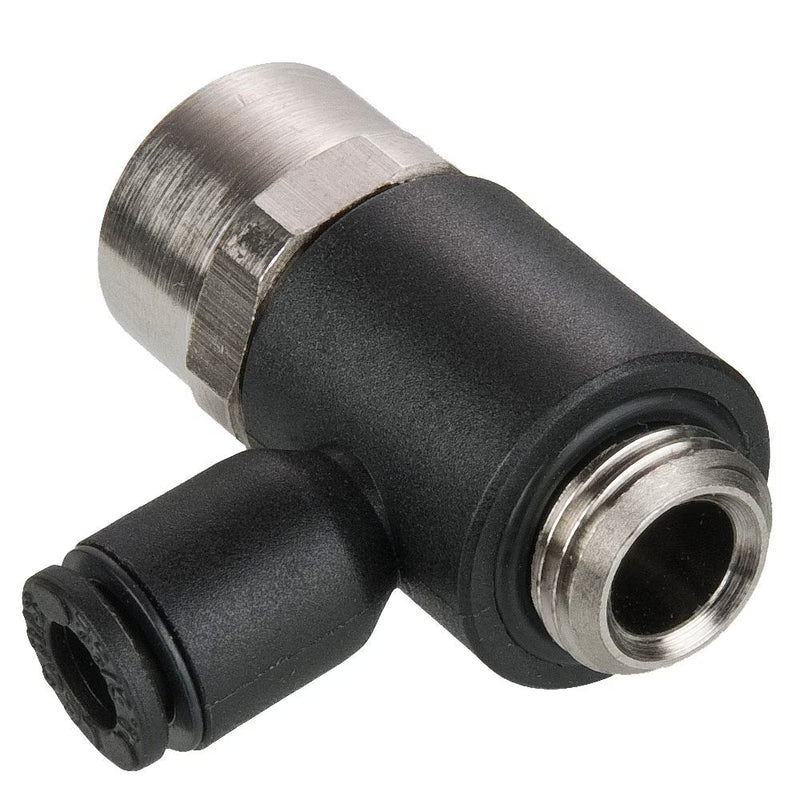

376PLPBJ-6M-4G by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Modular Fitting | 6 mm Tube Size x 1/4" Female BSPP Threads | 17mm Hex | 33.0mm Height (H) | Banjo | Glass-Reinforced Nylon | Pack of 10

376PLPBJ-6M-4G by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Modular Fitting | 6 mm Tube Size x 1/4" Female BSPP Threads | 17mm Hex | 33.0mm Height (H) | Banjo | Glass-Reinforced Nylon | Pack of 10

Save $111.68 Save $111.68
$279.20
$279.20 - $279.20
$279.20
$167.52
$167.52 - $167.52
$167.52

by Parker Hannifin
Push-to-Connect Fittings:376PLPBJ Banjo with Female Bolt

Package Quantity: 10 Units

Specifications for Variant SKU: 376PLPBJ-6M-4G Parker | 10 |
Series: 376PLPBJ Series
Shape (Orientation): Banjo
Material(s): Glass-Reinforced Nylon
Special Properties: Corrosion Resistance, Chemical Resistance, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size BSPP / M5 Hex (C) H L1 L2
376PLPBJ-4M-2G 4 mm 1/8" 13 mm 25.5 mm 7.0 mm 18.5 mm
376PLPBJ-6M-4G 6 mm 1/4" 17 mm 33.0 mm 9.0 mm 22.0 mm
376PLPBJ-8M-6G 8 mm 3/8" 20 mm 37.5 mm 11.0 mm 29.0 mm
