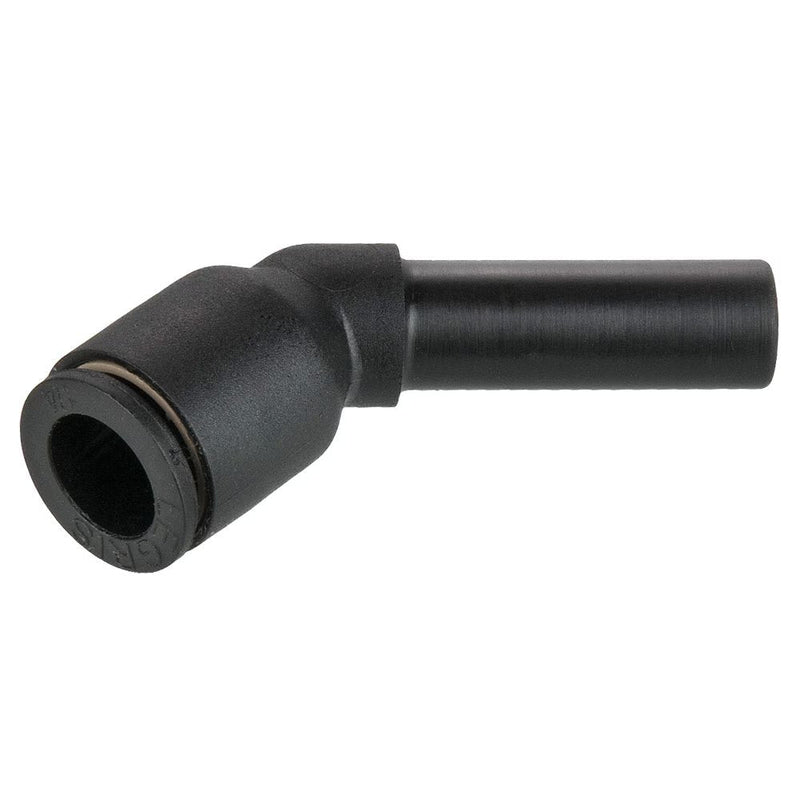

379PLPSP-8M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 8mm Tube Size | 44.0mm Height (H) | 45° Elbow | Glass-Reinforced Nylon | Pack of 10

Save $2.47

$27.20

$27.20 - $27.20

$27.20

$24.73

$24.73 - $24.73

$24.73

by Parker Hannifin
Push-to-Connect Fittings:379PLPSP 45° Plug-In Elbow

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 379PLPSP-8M Parker \| 10 \|
Series:	379PLPSP Series
Shape (Orientation):	45° Elbow
Material(s):	Glass-Reinforced Nylon
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size 1	Tube Size 2	H	H1	H2	L
379PLPSP-4M	4 mm	4 mm	33.5 mm	19.0 mm	21.0 mm	13.0 mm
379PLPSP-6M	6 mm	6 mm	39.0 mm	21.0 mm	25.0	14.5 mm
379PLPSP-8M	8 mm	8 mm	44.0 mm	21.5 mm	25.5 mm	19.5 mm
379PLPSP-10M	10 mm	10 mm	53.0 mm	27.0 mm	32.5 mm	23.0 mm
379PLPSP-12M	12 mm	12 mm	58.5 mm	27.5 mm	34.0 mm	26.5 mm
