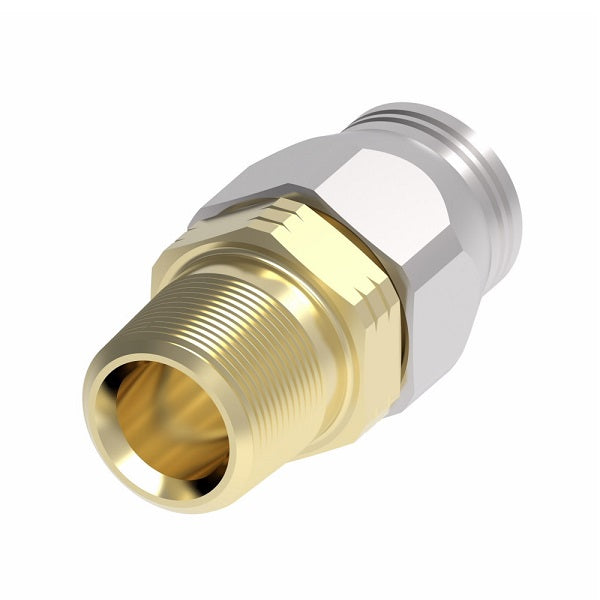

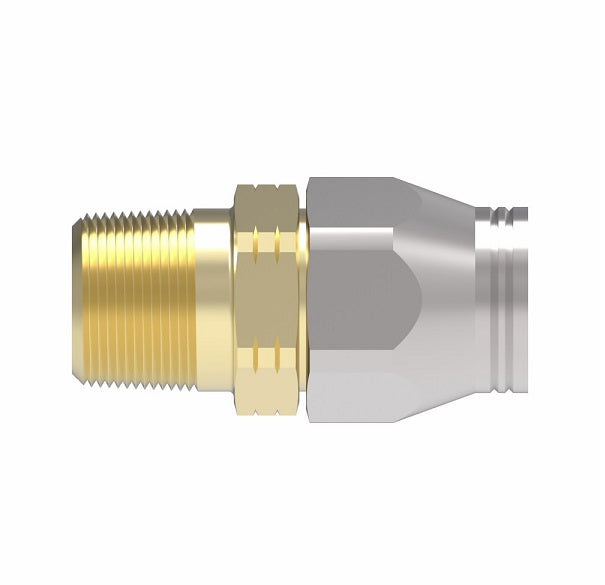

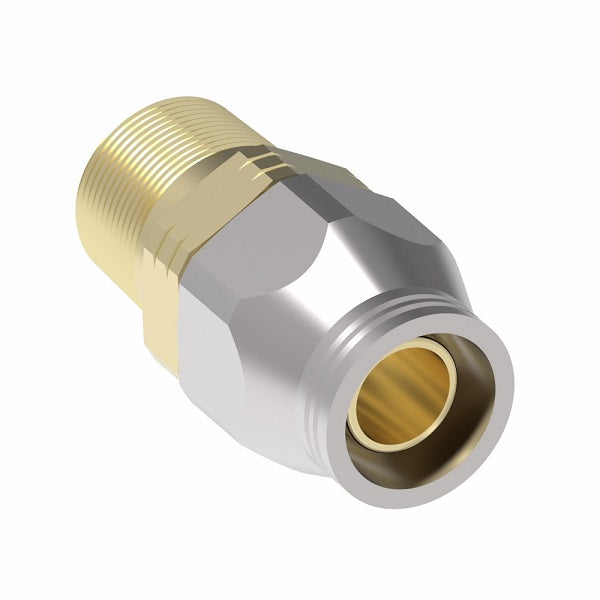

38-190628-24-24 Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -24 Male Pipe x -24 Reusable Hose End | Steel & Brass

38-190628-24-24 Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -24 Male Pipe x -24 Reusable Hose End | Steel & Brass

Name: 38-190628-24-24 Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -24 Male Pipe x -24 Reusable Hose End | Steel & Brass
Brand: Danfoss/Eaton
SKU: 38-190628-24-24 Danfoss
Price: 343.36 USD
Availability: InStock

$343.36 - $343.36

$343.36

$343.36 - $343.36

$343.36

Aeroquip® by Danfoss
Super Gem Reusable Hose Fitting for PTFE Hose - Male Pipe - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 38-190628-24-24 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1-1/2in Male NPT, 1-1/2in Reusable Hose End
Material(s):	Steel, Brass
Compatible with the following Series:	2807 Series \| FC465 Series \| S-TW Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel & Brass Part Number	Stainless Steel Part Number	Hose Size	Thread	A	D	EØ	Sleeve Brass Part Number	Sleeve Stainless Steel Part Number
38-190628-6-8	-	-08	3/8-18	1.91"	1.32"	0.35"	900568-8B	900568-8C
38-190628-12-12	-	-12	3/4-14	2.40"	1.63"	0.56"	900568-12B	900568-12C
38-190628-16-16	190628-16-16C	-16	1-11-1/2	2.63"	1.86"	0.83"	900568-16B	900568-16C
38-190628-20-20	-	-20	1-1/4-11-1/2	3.05"	2.09"	1.06"	900568-20B	-
38-190628-24-24	-	-24	1-1/2-11-1/2	3.16"	2.20"	1.28"	-	-

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
